Hama TV Wall Bracket, Swivel, Extendable, Long Arm, 165 cm (65"), up to 50 kg

00220853

Cooking in the kitchen and following your favourite series? Watching an exciting football match over dinner in the dining room? No problem with our ultra-long, fully movable TV wall bracket. This can be turned through 90° to also give you a perfect view of the TV from other rooms.

Shade of colour

Black, White Black

Price on demand

Is accessory of

Is accessory of

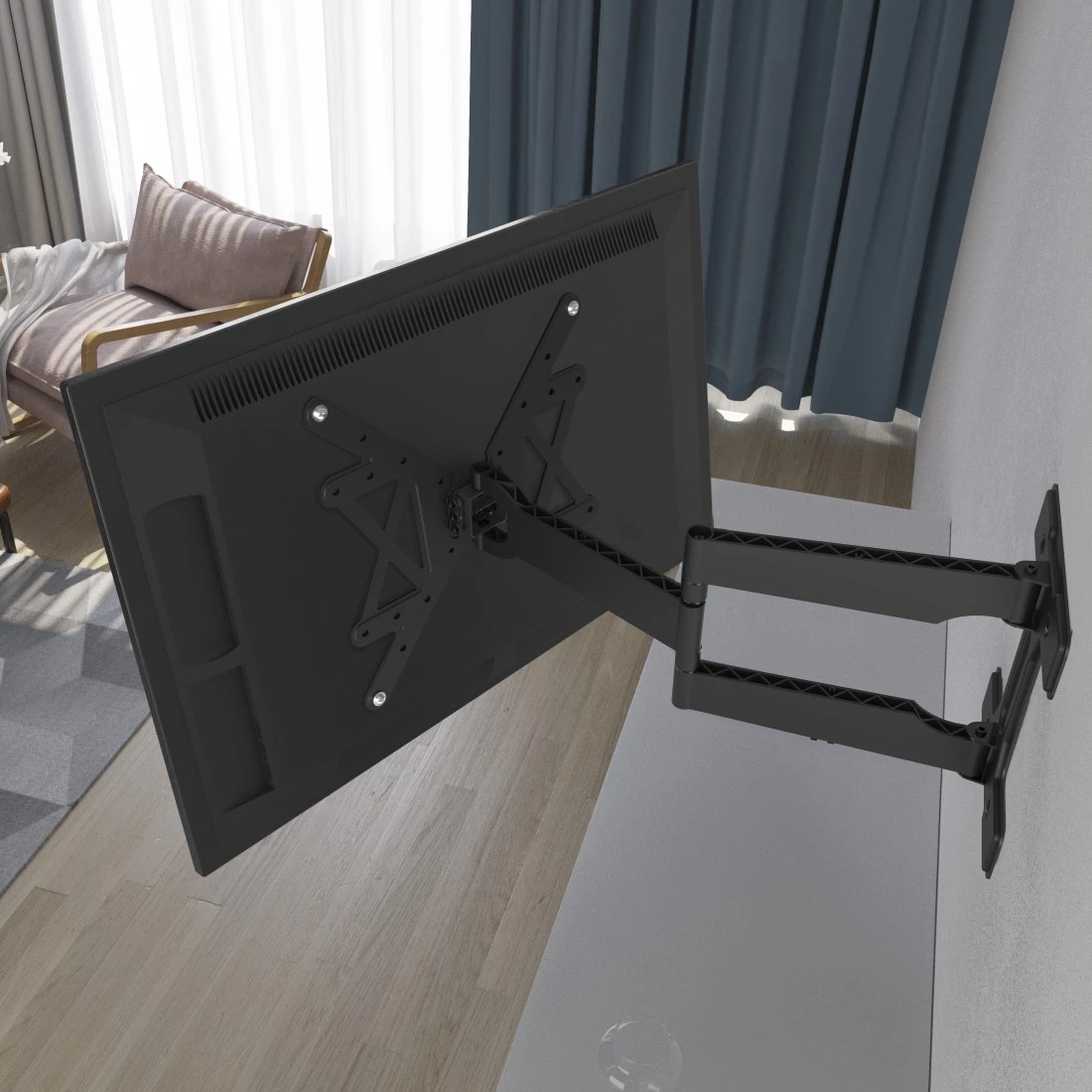

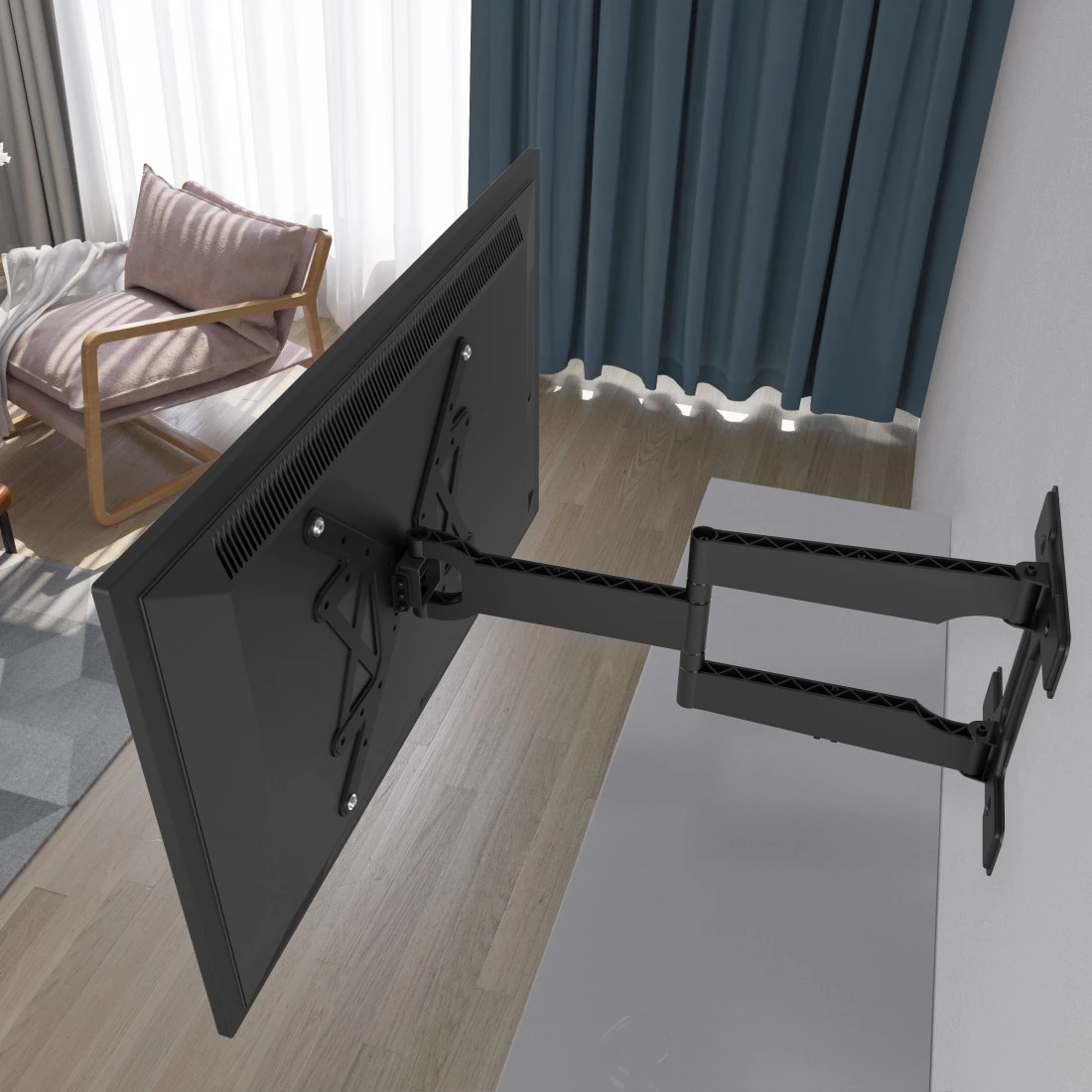

In a living room, a flat-screen TV is mounted on the wall on the swivel and extendable Hama TV wall mount

Hama TV Wall Bracket, Swivel, Extendable, Long Arm, 165 cm (65"), up to 50 kg

Ultra-flat TV wall bracket, maximum flexibility

Whether you want to sit comfortably in the recliner and watch an exciting crime thriller on TV or be entertained by your favourite series while cooking: with the fully mobile TV wall bracket, you can always make the most of your TV - no matter where you are in your home. You simply adjust the device to the desired position to achieve the perfect viewing angle on the flat screen. With this extremely flexible wall bracket, you can create the best conditions for unrestricted TV enjoyment, even in the room next door!

Extra-long swivel arm, perfect viewing angle

Don't be fooled by the innovative ultra-flat design, because there's plenty of functionality inside. With the three joints, the TV can be swivelled by up to 180° - 90° in any direction. This swivel arm makes it possible for you to watch your favourite series or an exciting sporting event in the kitchen as well as in your favourite armchair or perhaps even on the balcony. This means that the TV in the TV wall bracket adapts to your sitting position and not the other way round!

Assembly? A piece of cake

Even if you don't have any previous technical knowledge, the VESA-compatible TV wall bracket is easy to install: The enclosed drilling template simplifies mounting considerably. This makes it easy for you to mark out the holes quickly and precisely, without the hassle of positioning the TV bracket. Good markings are half the battle when drilling - and you are also well prepared for the next steps. The required Fischer plugs are also included in the scope of delivery, as are detailed instructions for easy installation. Because the quicker the bracket and TV are anchored to the wall, the quicker you can enjoy crime dramas, Champions League and the like.

A smart TV bracket through and through

Do you like things tidy and hate cable clutter? In this respect too, the TV wall bracket leaves nothing to be desired: The integrated cable management system organises the cables and provides reliable strain relief - both when fully folded and when the extra-long swivel arm is extended.

High-quality materials are just the beginning: thanks to its minimalist, extremely flat profile, the wall bracket is impressive in every respect. Thanks to its careful finish in elegant black, it blends in perfectly with your living environment - even when the arm of the bracket is extended and you see the innovative design in action as you pass by.

Safety and perfect support for your TV

The TV bracket offers optimum support for all flat-screen TVs with a screen diagonal of 81 - 165 cm (32" - 65") and a VESA standard of 100 x 100 to 400 x 400. It has undergone thorough safety tests and fulfils the most stringent quality requirements: the high load capacity of up to 50 kg has been extensively tested and confirmed. This means that you can always move your TV on the wall bracket without risk and always align it perfectly - across all rooms.

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

10-year warranty

10-year warranty: a warranty promise on longevity that goes far beyond the statutory guarantee

Tested quality

Make a safe choice with our tested safety: exacting stress, stability and functional tests guarantee high quality standards

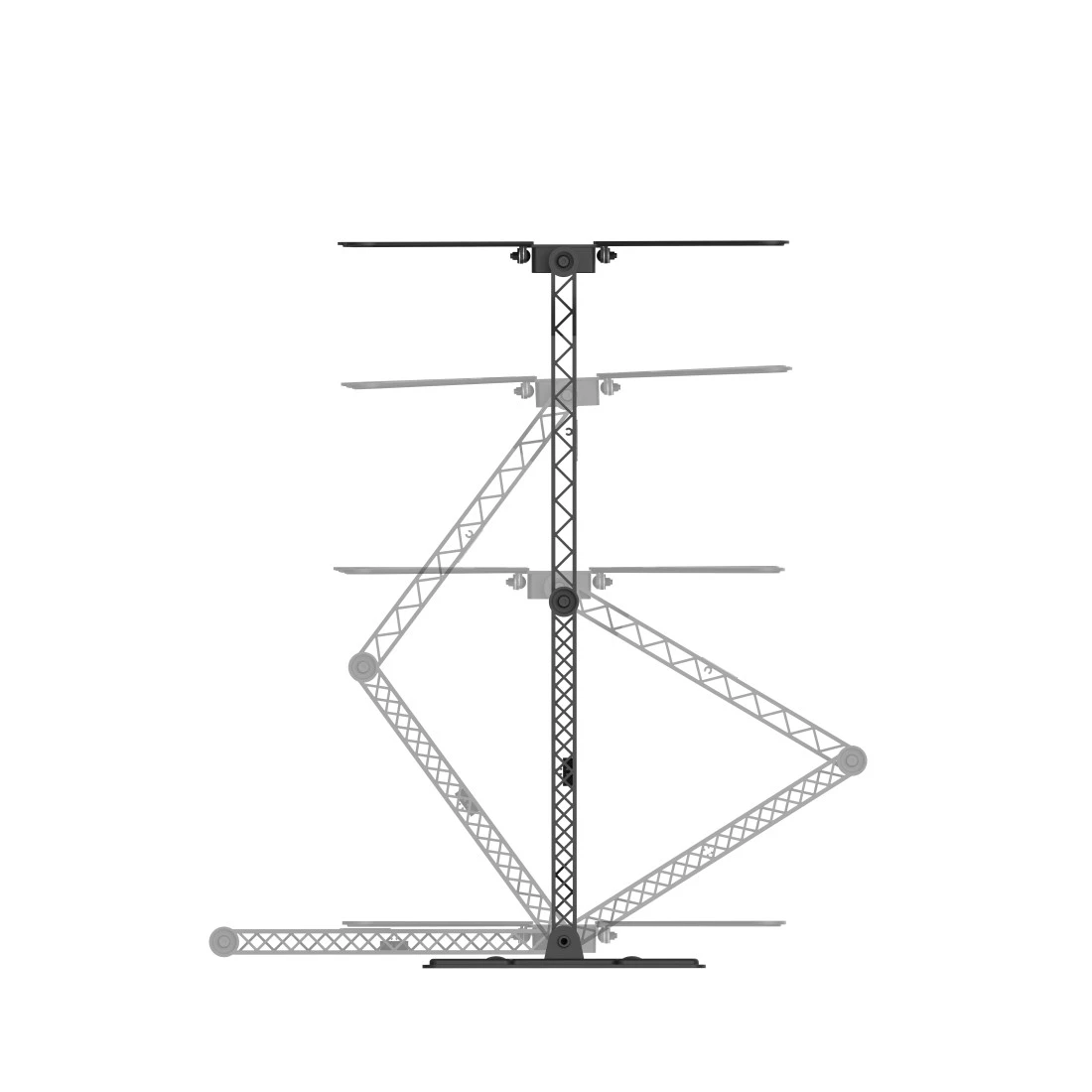

Extra-long arm

From the sofa to the kitchen: with this extra-long arm, the TV can be swivelled 180° to the wall, enabling you to follow your favourite programme from any angle in open-plan living rooms

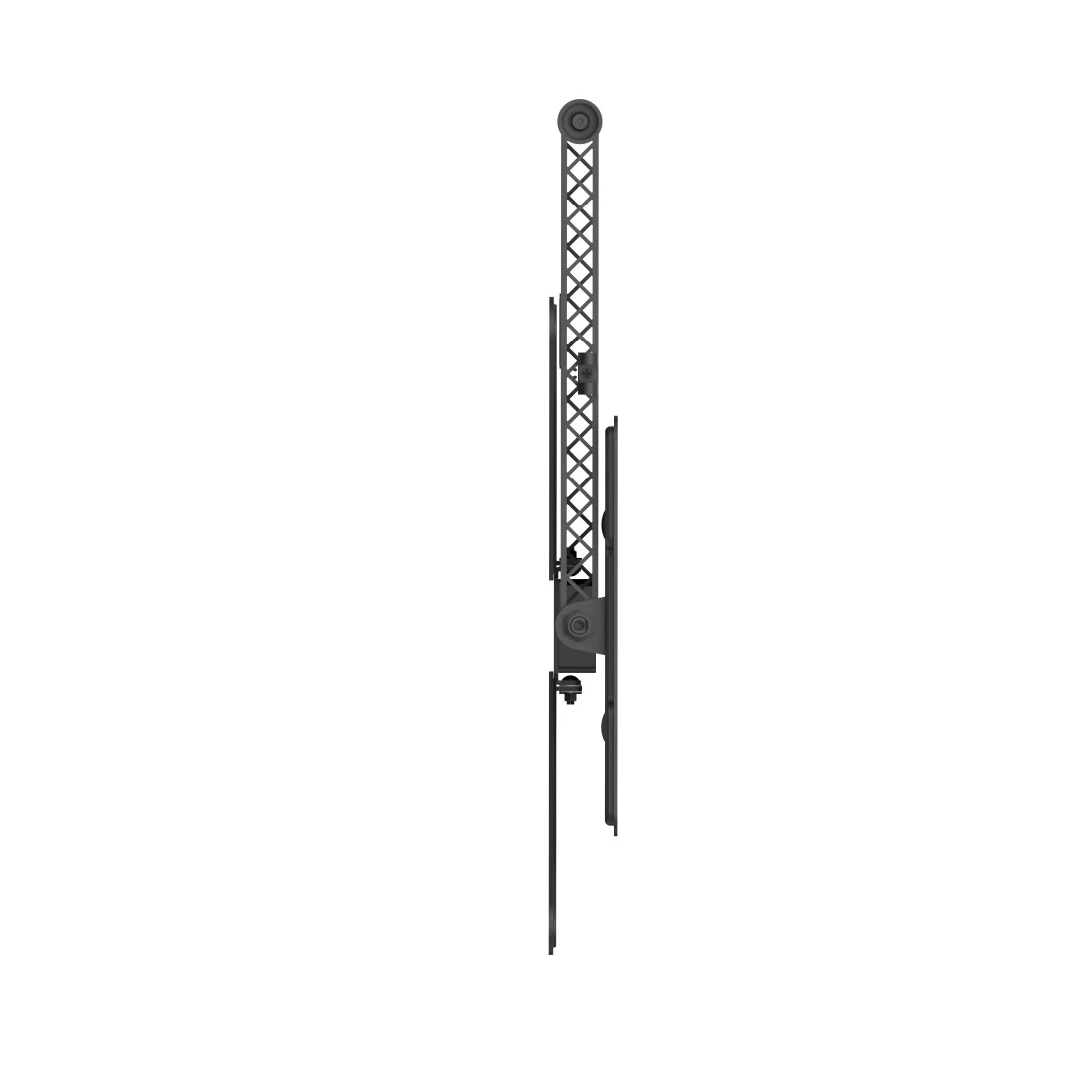

Ultra-flat profile for small wall distances at 4.6 cm

Aesthetic and agile: with the small wall distance of 4.6 cm, the TV bracket and its ultra-flat profile blends in unobtrusively with the living space, ensuring full mobility in all directions

Fully mobile TV bracket

For the perfect viewing angle: this TV bracket adapts to your individual needs, whether they be for swivel, tilt or pull-out. This is how home entertainment works

TV mounting with VESA standard

Reliable mounting of TV sets with VESA standard from 100x100 to 400x400

Includes mounting material

Everything included: with the diverse mounting accessories, including high-quality Fischer plugs, you can get started straight away

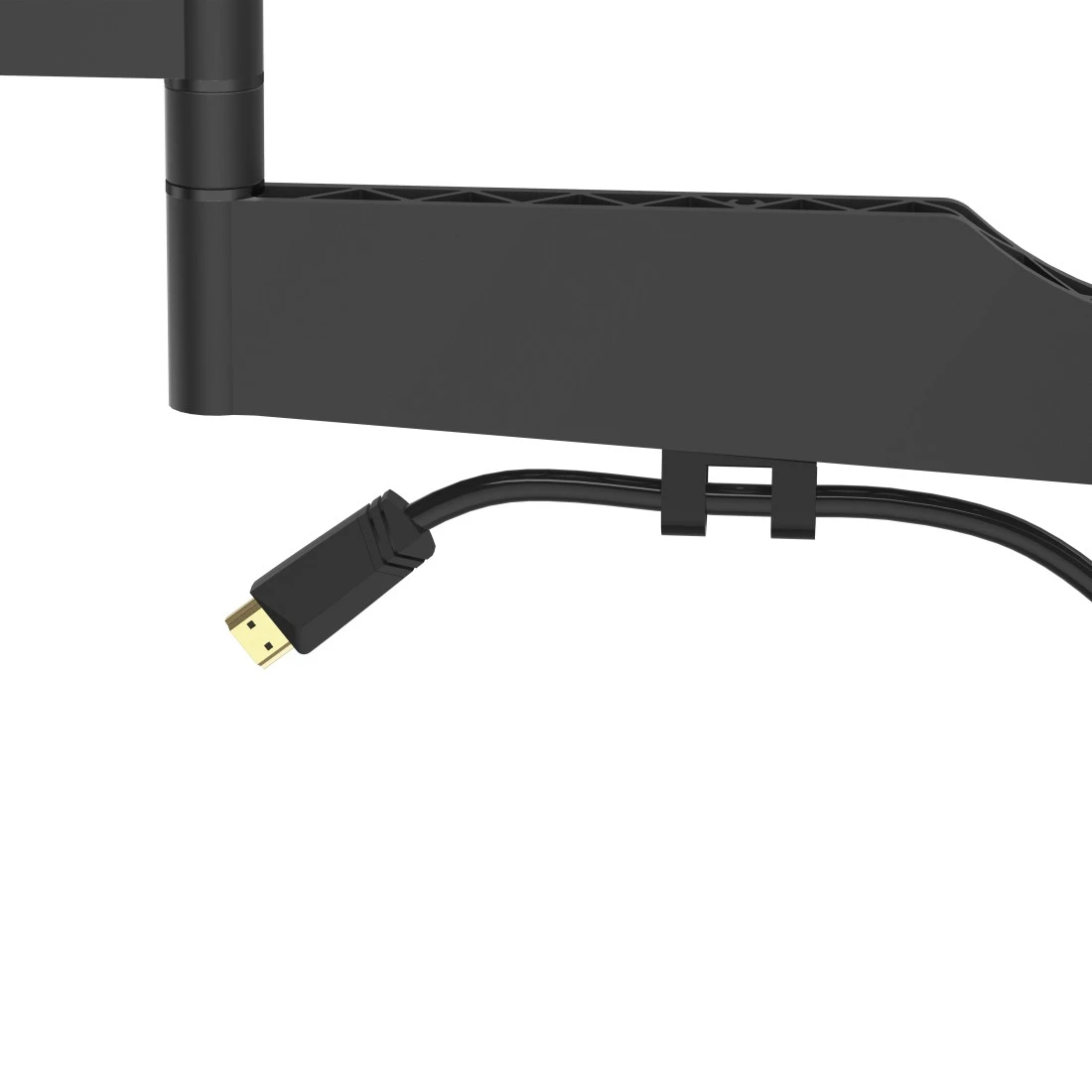

Integrated cable management

For a tidy living environment: Cable management guides the cables tidily behind the TV set, avoiding cable spaghetti and saving space. The cable guide also protects the cable against breakage thanks to strain relief

Drilling template for marking the drill holes

The drilling template means easy marking of the drill holes without having to hold the bracket up against the wall

Rebalancing

If the TV bracket has been mounted slightly at an angle on the wall, the position of the TV can be corrected by a few degrees horizontally

FSC

FSC-certified: the paper and cardboard used in our packaging comes from sustainable forest management - enabling us to take a resources-sparing approach to the raw material of wood

Plastic-free

Packaging with a clear conscience: our packaging is 100% plastic-free, enabling us to reduce plastic waste and increase its recyclability

Technical Specs

Design (Colour, Pattern, Motif, Series)
Colour	Black
Shade of colour	Black

Quality
Quality	Ultraslim

Physical Properties
Additional Functions	Cablemanager, Drilling template
Hole Size Attachment	Up to M8
Material	Steel
Maximum Load Capacity	50 kg
Maximum swivel range	180 °
Model	TV
number of joints	3
Projection maximum	72 cm
Projection minimum	4.62 cm
Rotation	6 °
Tilt +/-	3 / 12 °

Size & Weight
External Dimension (Height)	44 cm
External Dimension (Width)	57.2 cm
Mounting Plate (Length)	34.7 cm
Mounting Plate (Width)	28.1 cm
Screen Dimensions	81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65")
VESA (from-to)	100x100 - 400x400
VESA Standard	100 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 400
Wall Spacing	72 cm

Field of Application
Field of Application	Private
Recommended Maximum Screen Size	165 cm (65")
Recommended Minimum Screen Size	81 cm (32")
Recommended Screen Size	81 - 165 cm (32"- 65")
Suitable for	TV
Version	Swivelling/Tilting

More product information
- Full flexibility in the home cinema: whether it be your favourite chair or the sofa corner, with this fully mobile wall bracket with extra-long swivel arm, film and series addicts will always be sitting in the VIP lounge. Ideal for flat-screen TVs with a screen diagonal of 81 to 165 cm (32" to 65")
- TV wall bracket especially suited for ultra-flat OLED televisions, allows optimal positioning of the flat-screen TV in any room, ideal for open-plan living rooms
- Always the perfect distance from the TV: the swivel arm creates a max. wall distance of 72 cm
- Up to +3°/-12° continuous tilt
- Swivel of up to 180° at 3 joints
- The Easy-Fix system allows all functions to be easily and steplessly adjusted and resecured
- With small spirit level for easy and quick installation
- Design developed in Germany
What's in the Box
- 1 FULLMOTION TV wall bracket
- Installation material incl. Fischer plugs
- 1 spirit level
- 1 drilling template
- 1 installation instructions
Note for Consumers

In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.

To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
Warranty

Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00220853 TV Wall Bracket, Swivel, Extendable, Long Arm, 165 cm (65"), up to 50 kg: 10 Years Warranty
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.

In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:

Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany

We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.

The warranty is valid only for non-commercial users of our product.

In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.

Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.

Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022

Test results

07/24

Very good (8.6)

"The Hama Fullmotion 118066 has a high-quality finish and is extremely flexible. It is ideal if you regularly need to adjust your medium-sized TV to different viewing angles."

FAQs

How do I change the position of the flat screen TV using the rotation setting?
Loosen the corresponding fastening screws and set the desired rotation. Then tighten the screw connection only so far that you can still adjust the TV by hand - i.e. do not tighten it completely. After releasing, the flat screen TV should then remain in the position you selected. This ensures that you can make minor changes to the position of the TV set at any time without using tools.
