Multimeter

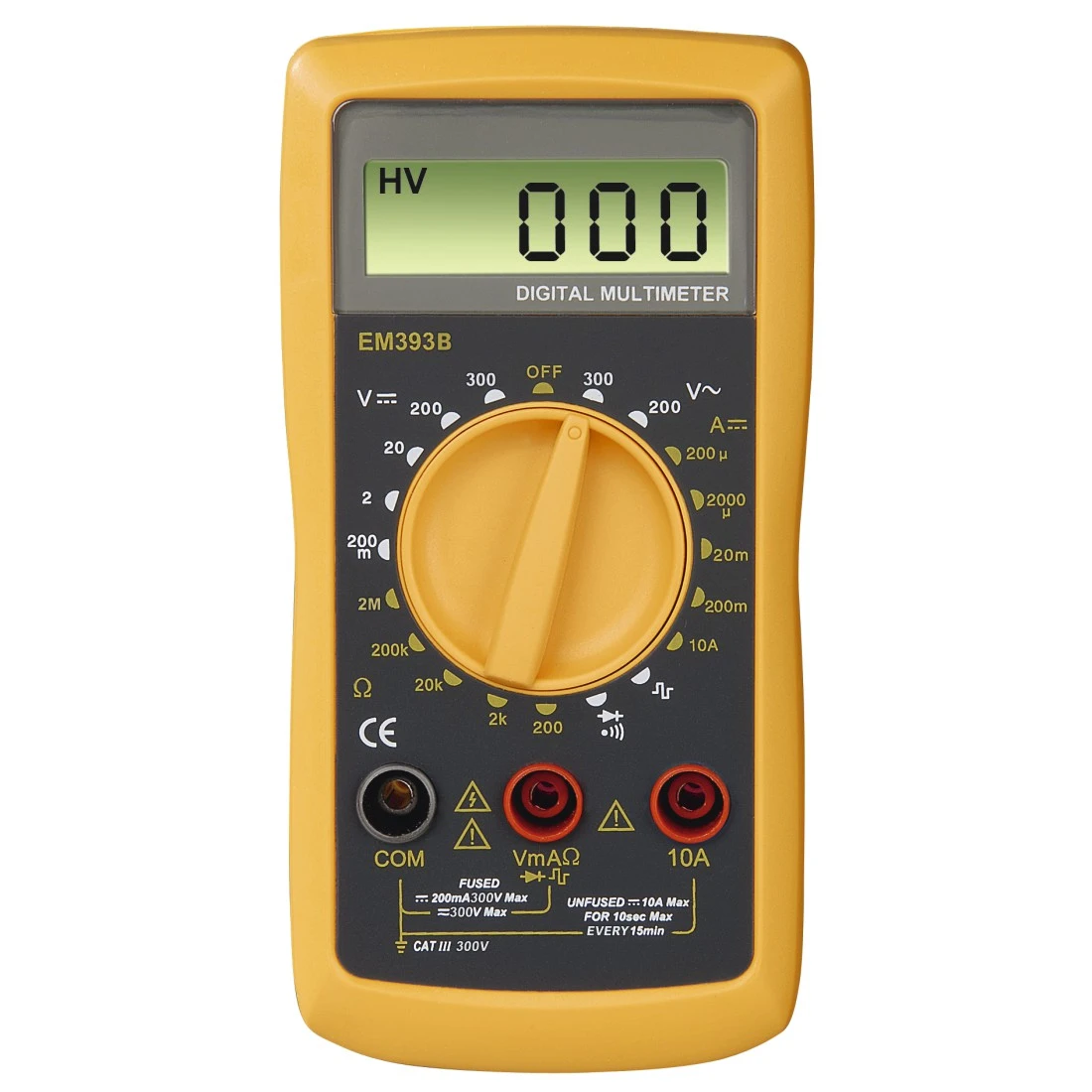

Hama Digital Multimeter, CAT III, 300 V
00223565
Compact manual multimeter for measuring voltage, current and resistance
Price on demand
Is suitable for
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
| Colour | Yellow |
| Shade of colour | Yellow |
| Measuring Range (DC) | Above 250 V |
| Additional Functions | Diode test |
| Measuring Range (AC) | Above 250 V |
| Depth | 28 mm |
| Height | 137 mm |
| Weight | 186 g |
| Width | 70 mm |
- Compact manual multimeter for measuring voltage, current and resistance
- Digital multi-meter with LCD display for measuring DC voltage, AC voltage, DC current, AC current and resistance
- DC voltage measuring range: 200 mV to 300 V
- AC voltage measuring range: 200 V to 300 V
- Direct current measuring range: 200 μA to 10 A
- Resistance measuring range: 200 Ohm to 2 MOhm
- Diode check with acoustic signal
- TTL test signal (digital technology) 3 V
- With automatic polarity indicator

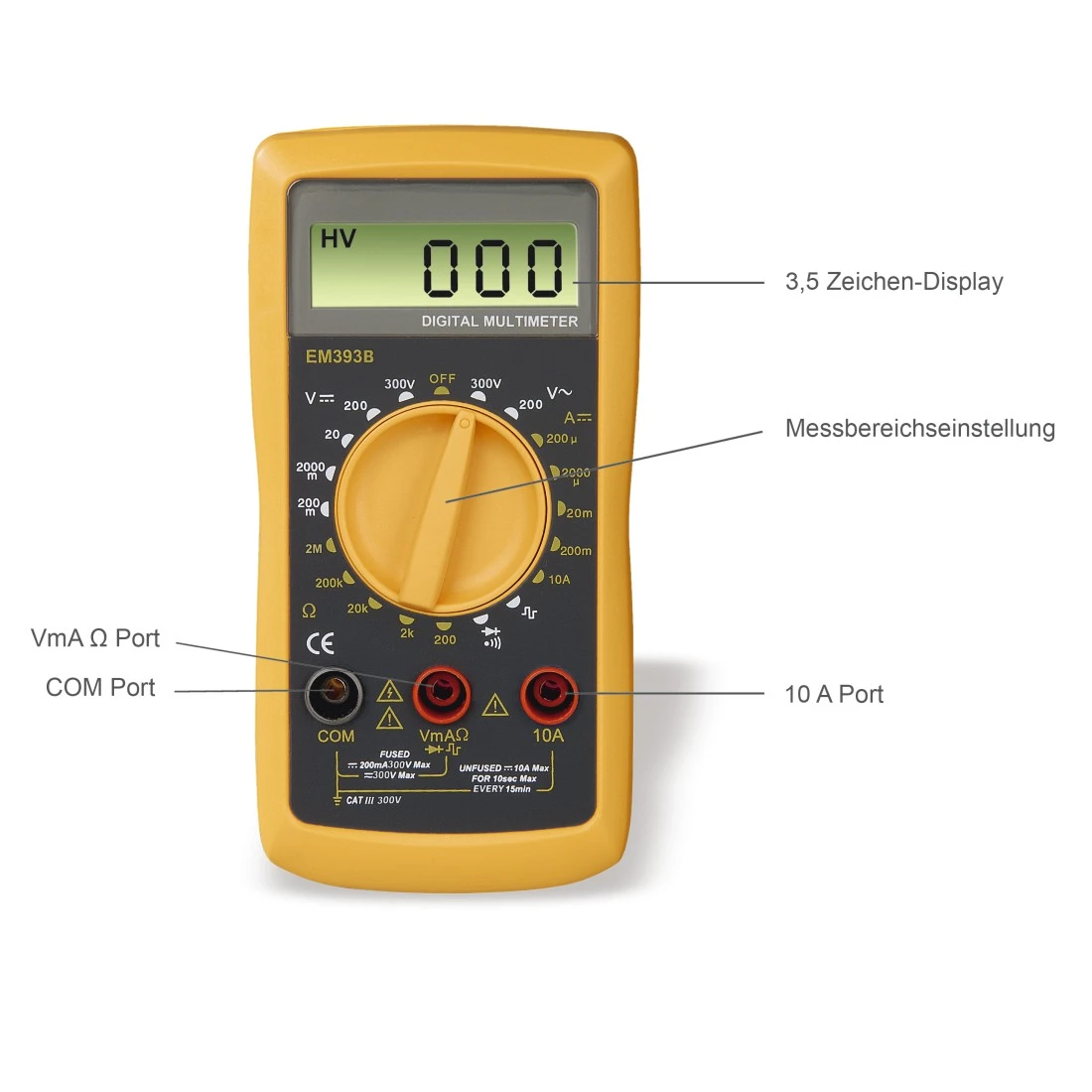

- 3.5-digit display

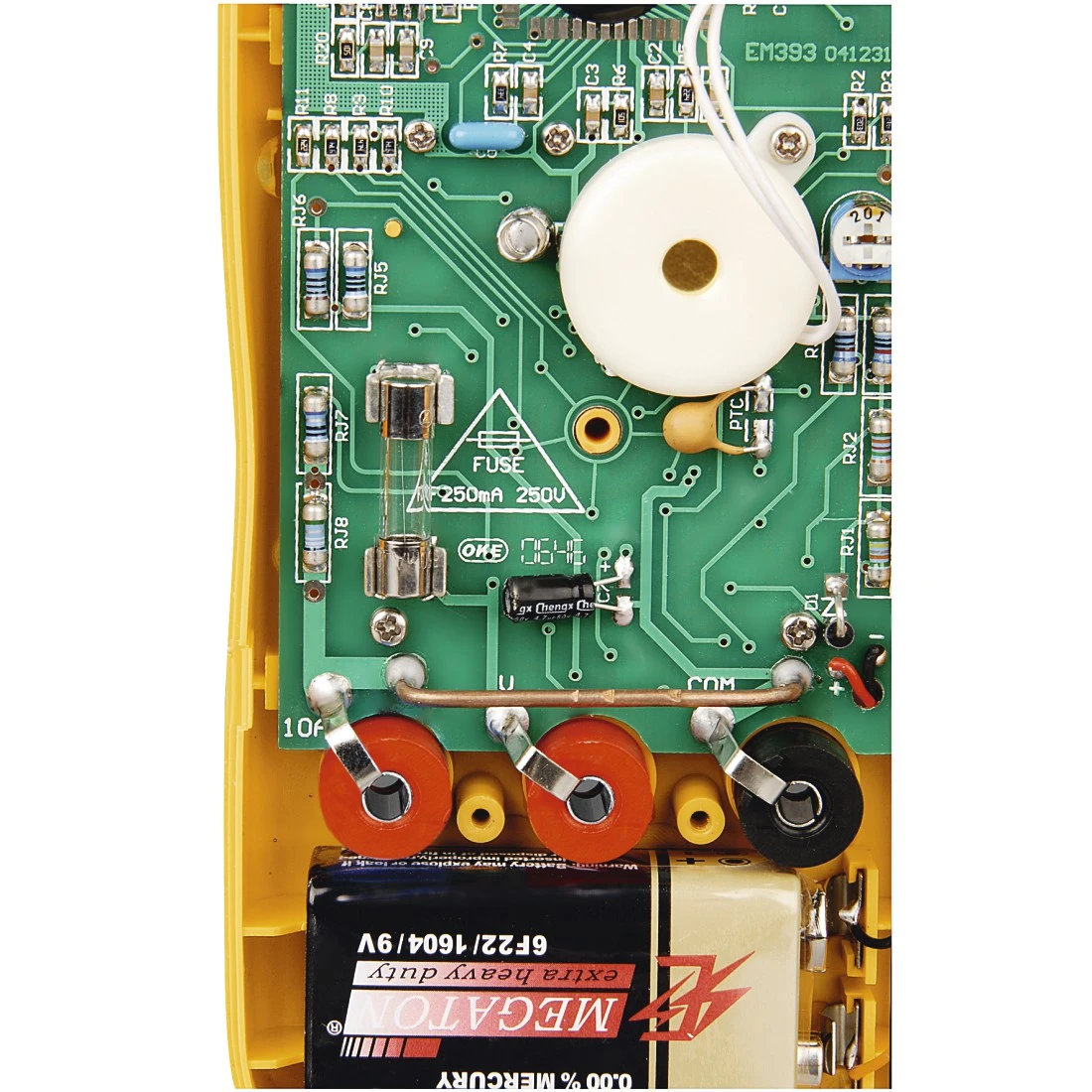

- Changeable fuses (250 mA and 10 A)

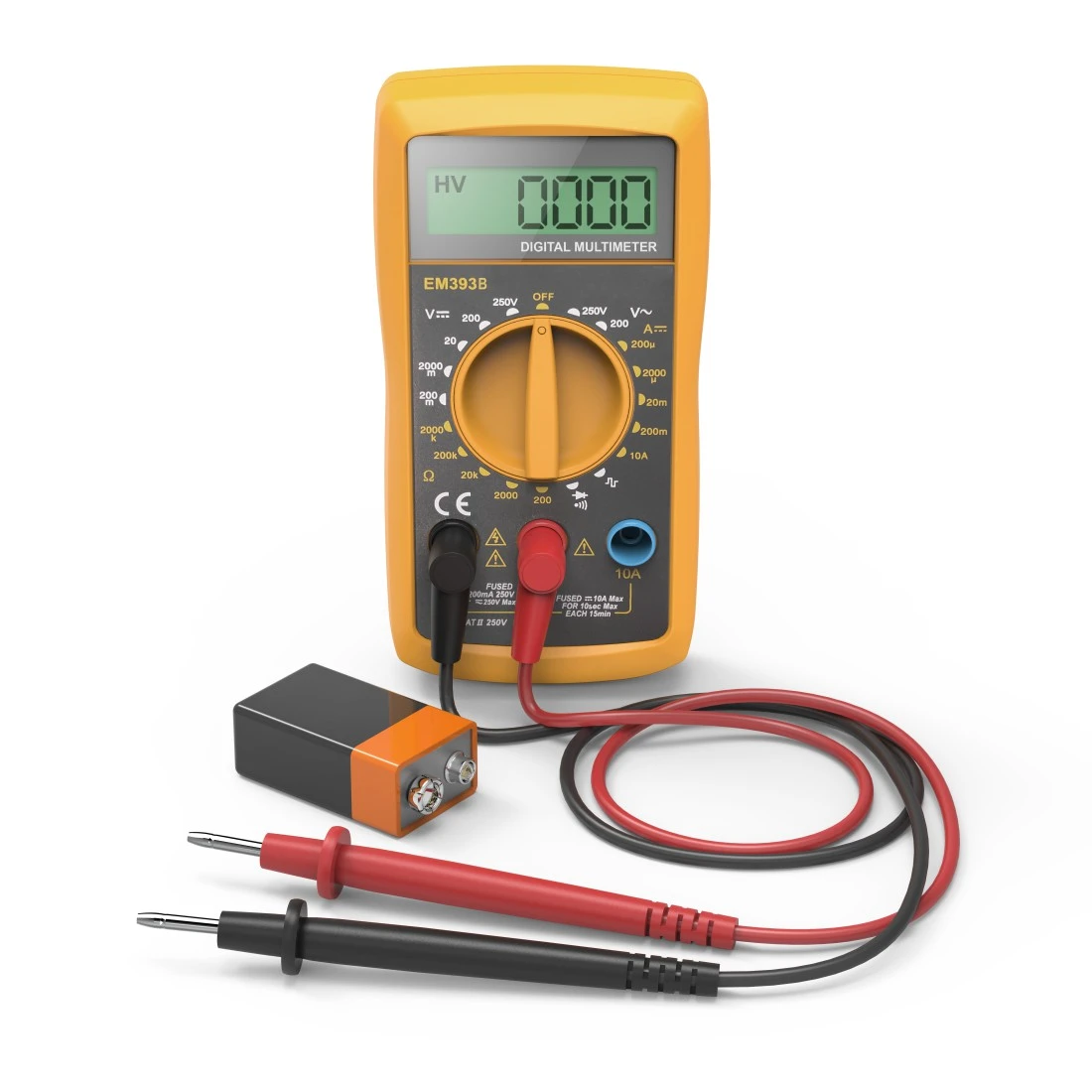

- 1 digital multimeter
- 1 red measuring cable
- 1 black measuring cable
- 1 9V block
- 1 operating manual
