LNB

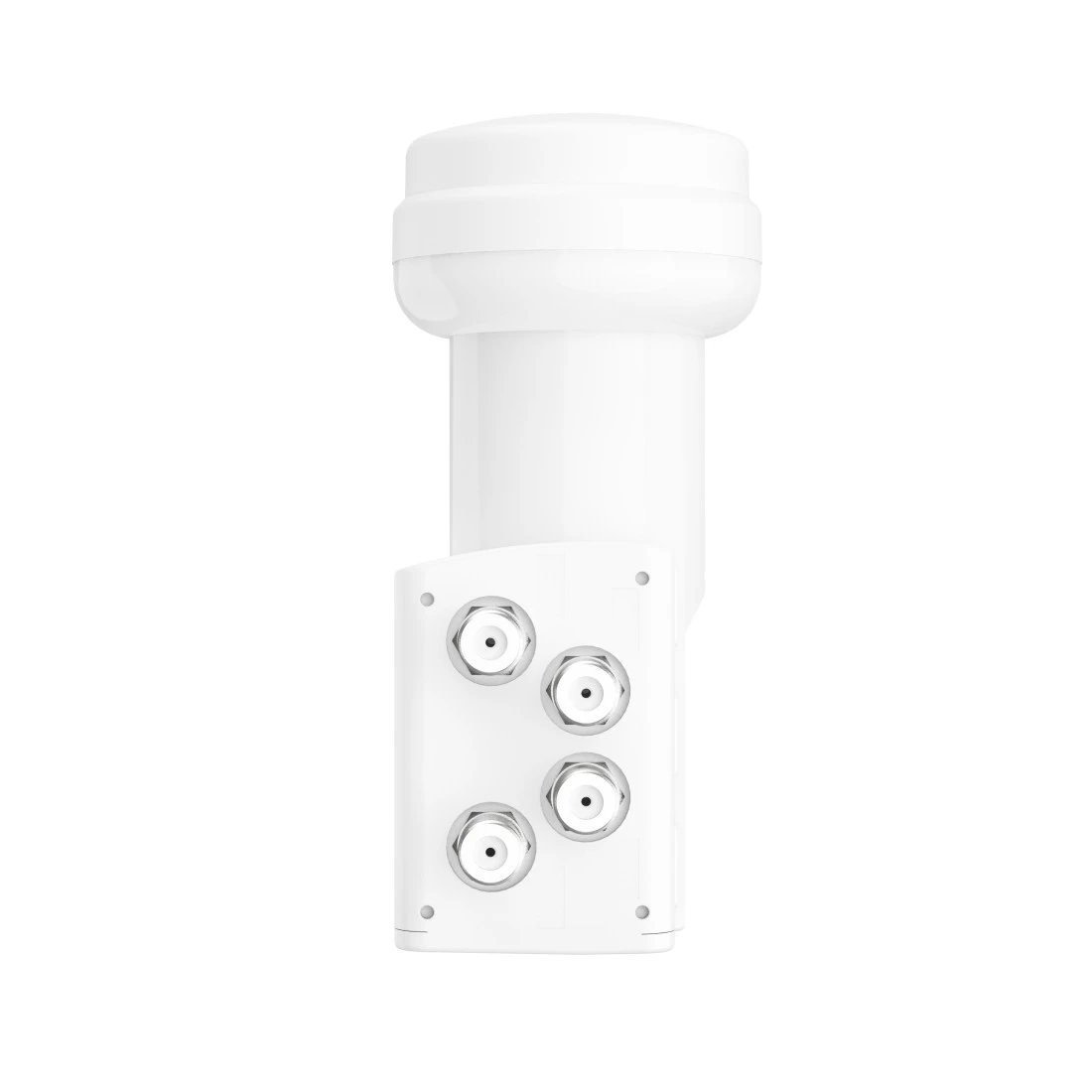

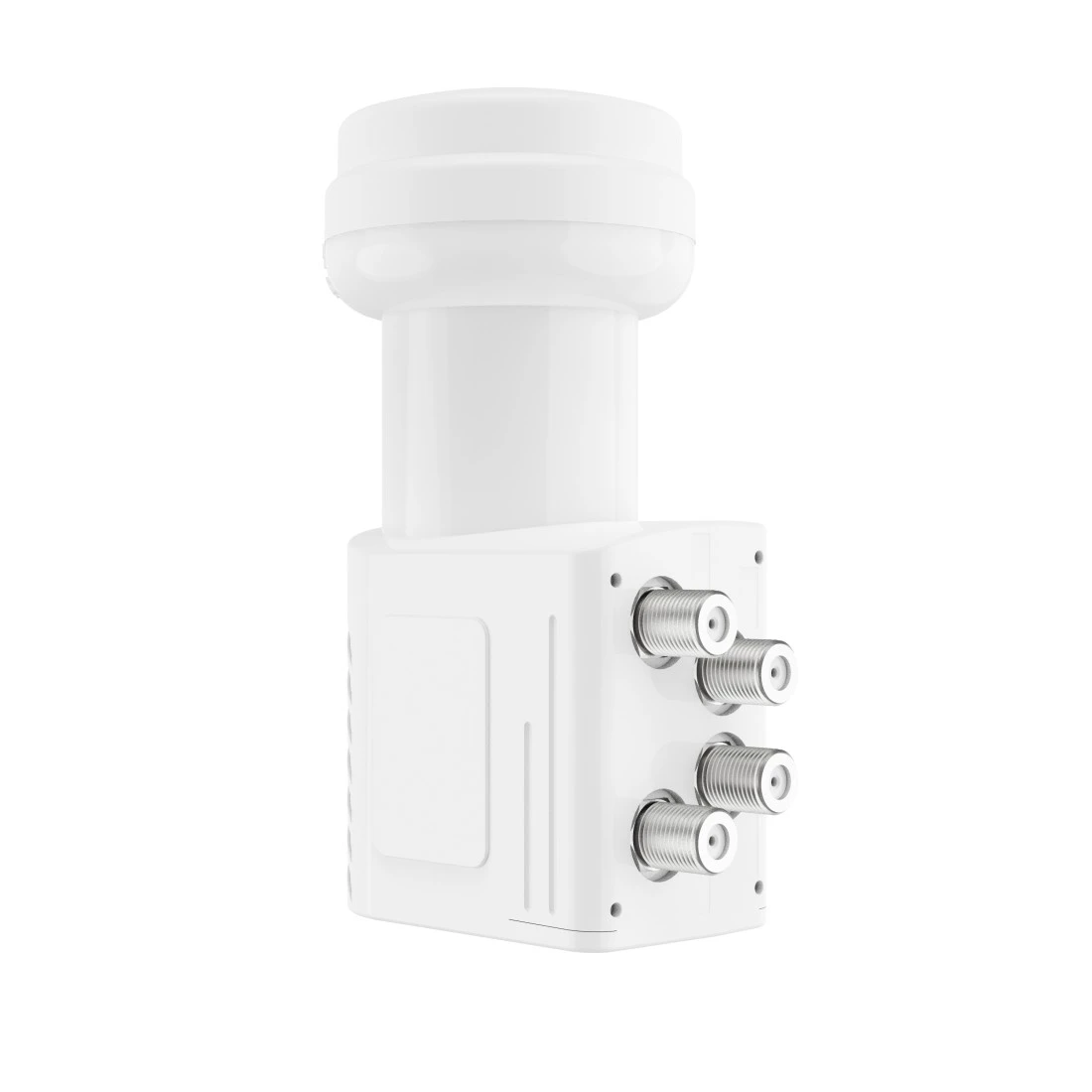

Hama Universal Quad LNB
00205377
For simultaneously connecting four digital SAT receivers or TVs with build-in digital receiver
Price on demand
Is suitable for
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Low noise factor of 0.3 dB
Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB
Robust weatherproof housing
Safe protection from wind and weather: the sturdy weatherproof housing protects the LNB and connections and ensures consistently good transmission quality
Connection for 4 receivers
Supply several devices: thanks to the built-in multi-switch, up to 4 digital receivers can be connected directly to the Quad-LNB
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour White Shade of colour White Connectivity (Connection) Output 4x F Socket Electrospecific Properties Amplification (typically) 61 dB Gain (typical) min. x Gain (typical) max. 55 x 68 dB Input Frequency Range 10,7 Ghz - 12,75 Ghz Noise Factor (typically) 0.3 dB Oscillator Frequency 9.75 GHz (L1), 10,6 GHz (L2) Output Frequency Range 950-2150 MHz Power Consumption (typical) 125 mA Switch vertical/horizontal 14V, 18V Physical Properties Additional Functions 22 kHz switching Model Quad-LNB Size & Weight Feed Horn Diameter 40 mm -
More product information
- for simultaneously connecting four digital SAT receivers or TVs with build-in digital receiver
- For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
- With integrated multi-switch for 4 participants
- Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
- 22 kHz switching between low and high band
- Weatherproof thanks to extendable weatherproof housing
-
What's in the Box
- 1 universal quad LNB
- 1 instruction manual
-
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
