LNB

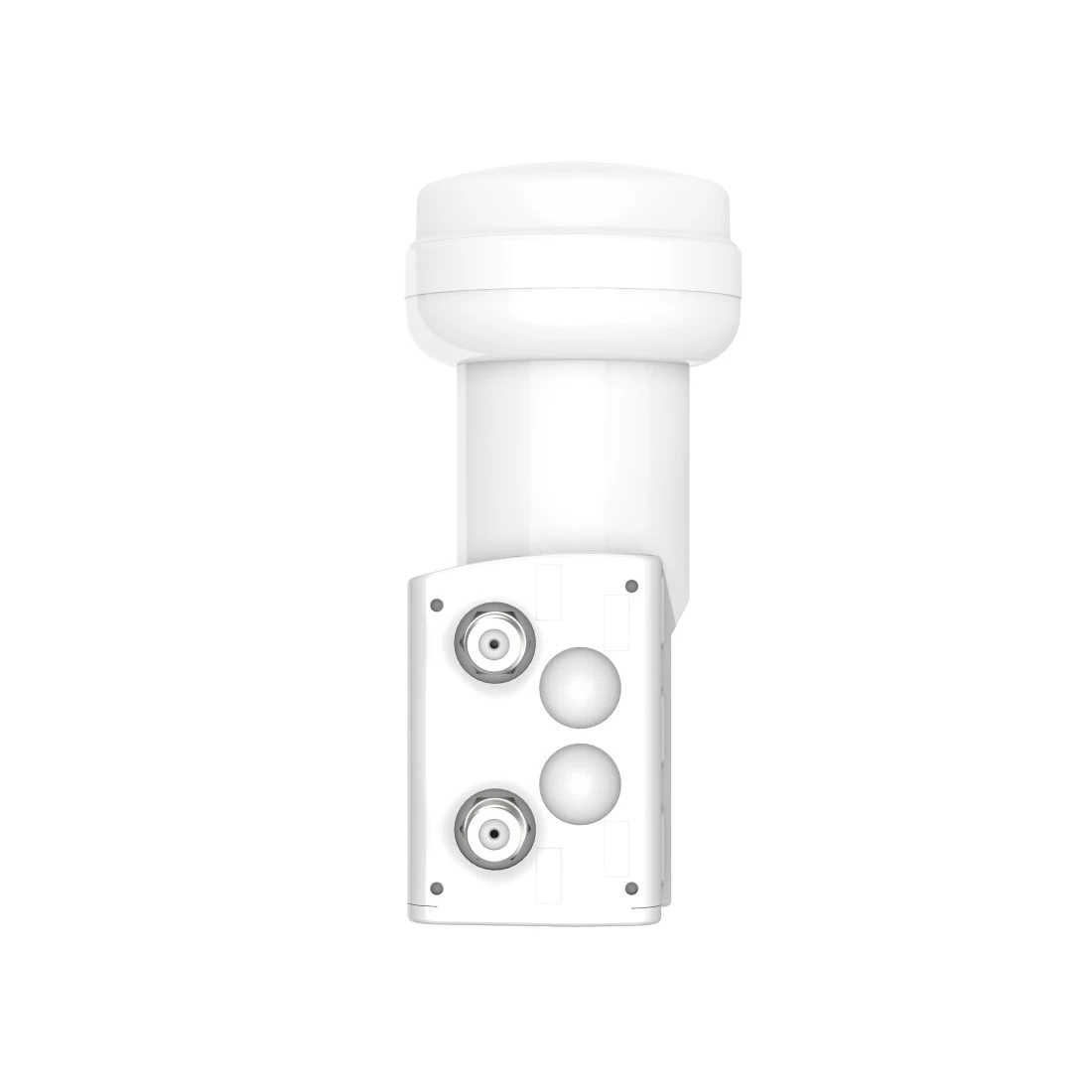

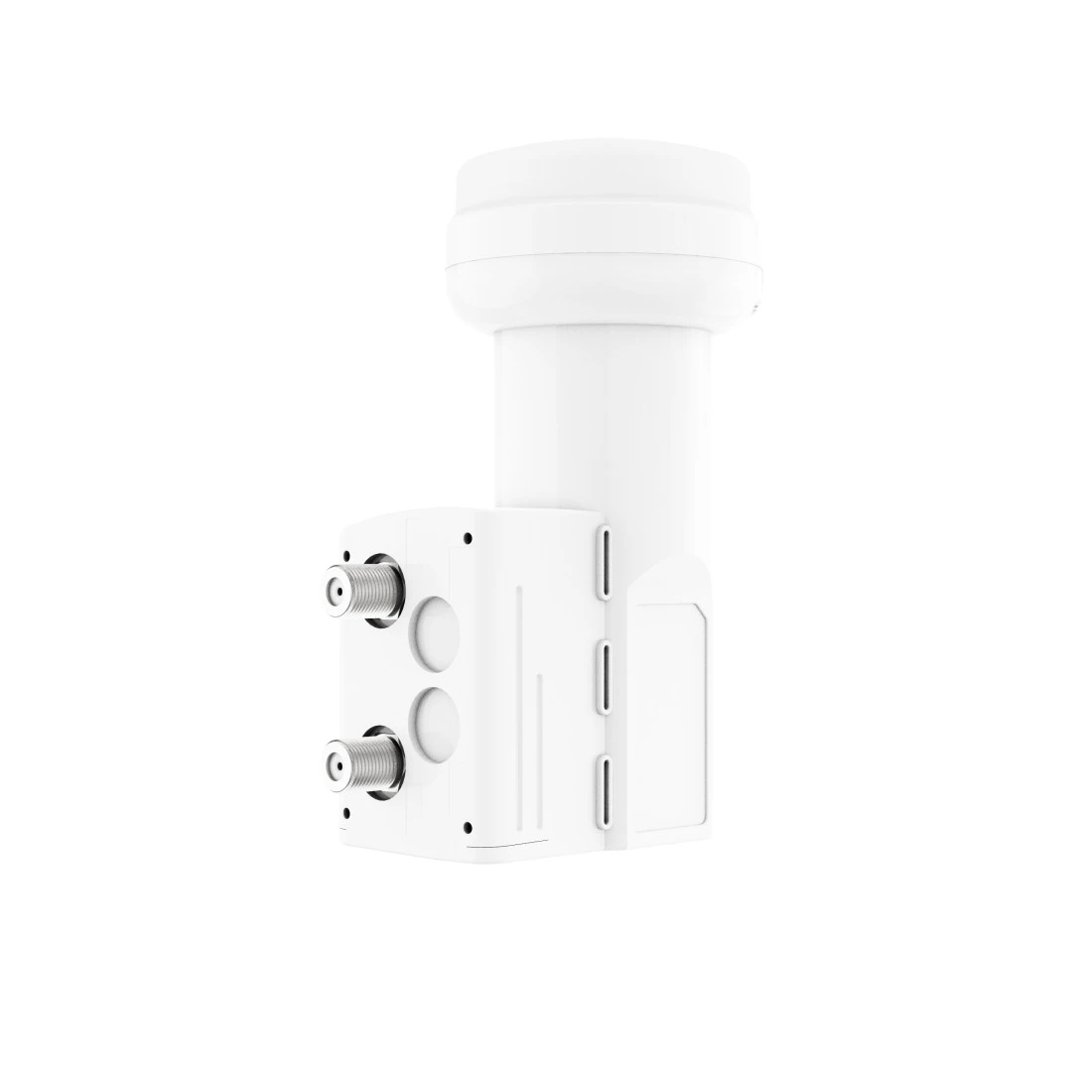

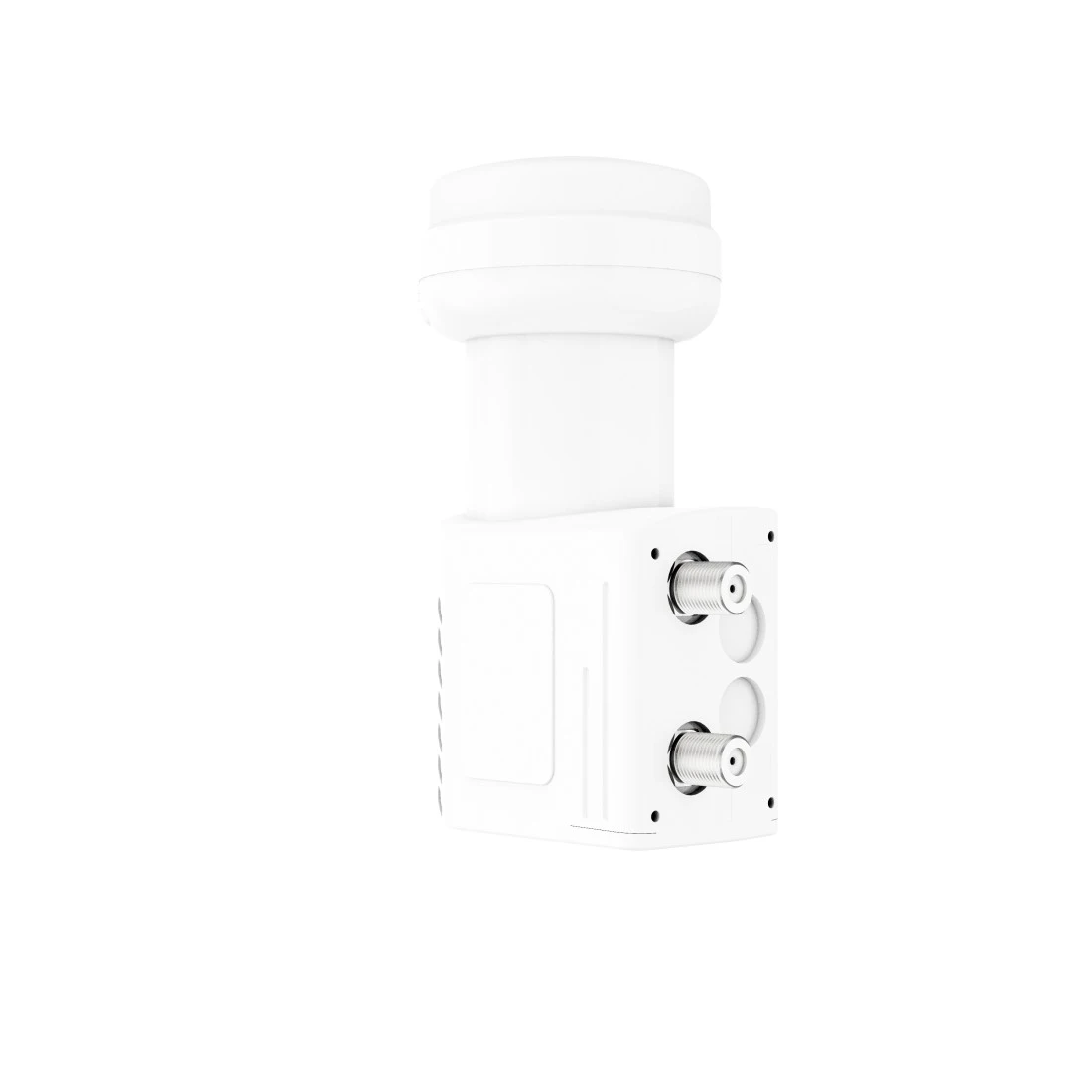

Hama Universal Twin LNB
00205375
Ideal for connecting two digital receivers or TVs with built-in digital receiver
Price on demand
Is suitable for
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Low noise factor of 0.3 dB
Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB
Robust weatherproof housing
Safe protection from wind and weather: the sturdy weatherproof housing protects the LNB and connections and ensures consistently good transmission quality
Connection for 2 receivers
Supply several devices: thanks to the two connections on the Twin LNB, up to 2 digital receivers can be connected
| Colour | White |
| Shade of colour | White |
| Output | 2x F Socket |
| Amplification (typically) | 62 dB |
| Gain (typical) min. x Gain (typical) max. | 56 x 68 dB |
| Input Frequency Range | 10,7 Ghz - 12,75 Ghz |
| Noise Factor (typically) | 0.3 dB |
| Oscillator Frequency | 9.75 GHz (L1), 10,6 GHz (L2) |
| Output Frequency Range | 950-2150 MHz |
| Power Consumption (typical) | 97 mA |
| Switch vertical/horizontal | 14V, 18V |
| Additional Functions | 22 kHz switching |
| Model | Twin-LNB |
| Feed Horn Diameter | 40 mm |
- ideal for connecting two digital receivers or TVs with built-in digital receiver
- For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
- Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
- 22 kHz switching between low and high band
- Weatherproof thanks to extendable weatherproof housing
- 1 universal twin LNB
- 1 instruction manual
