LNB

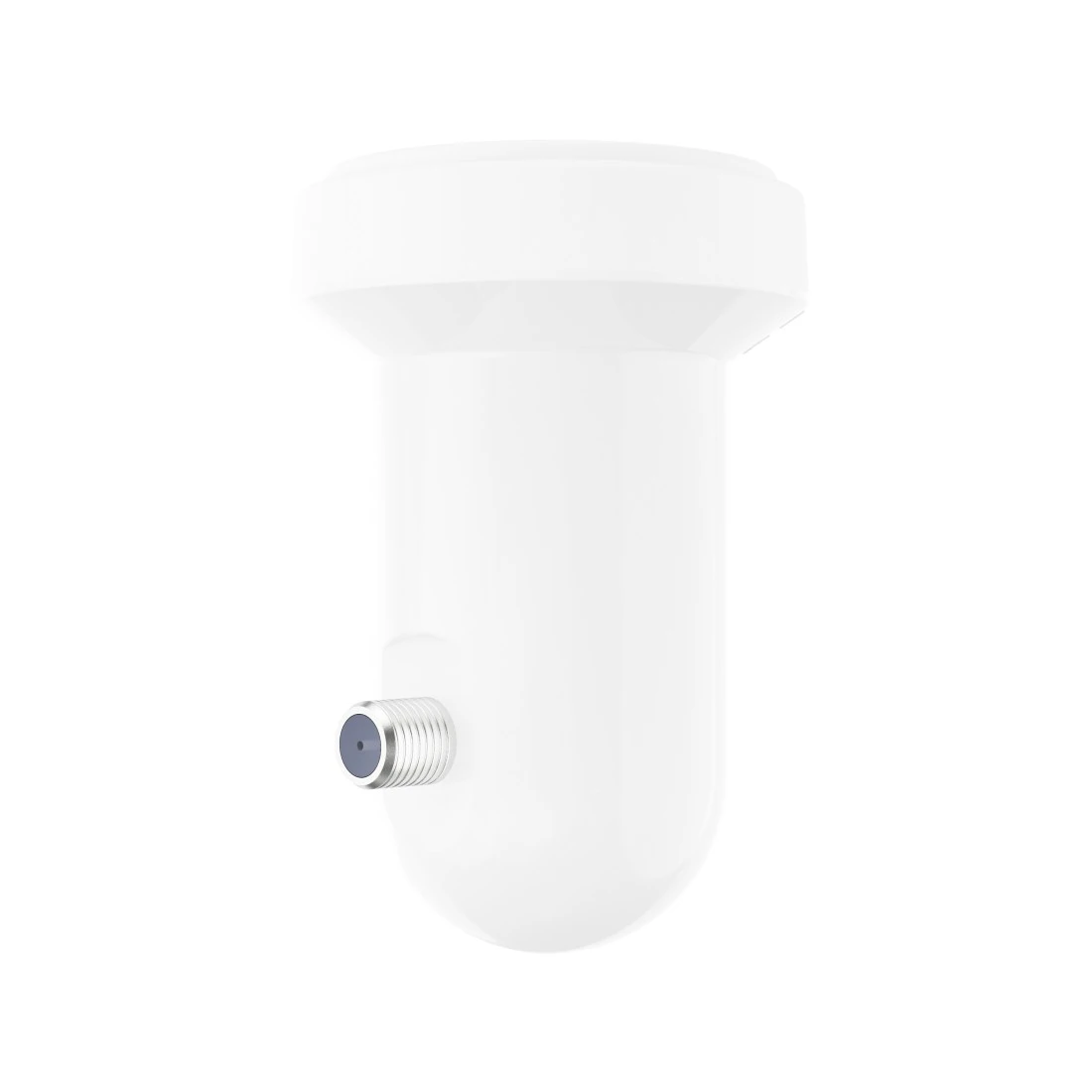

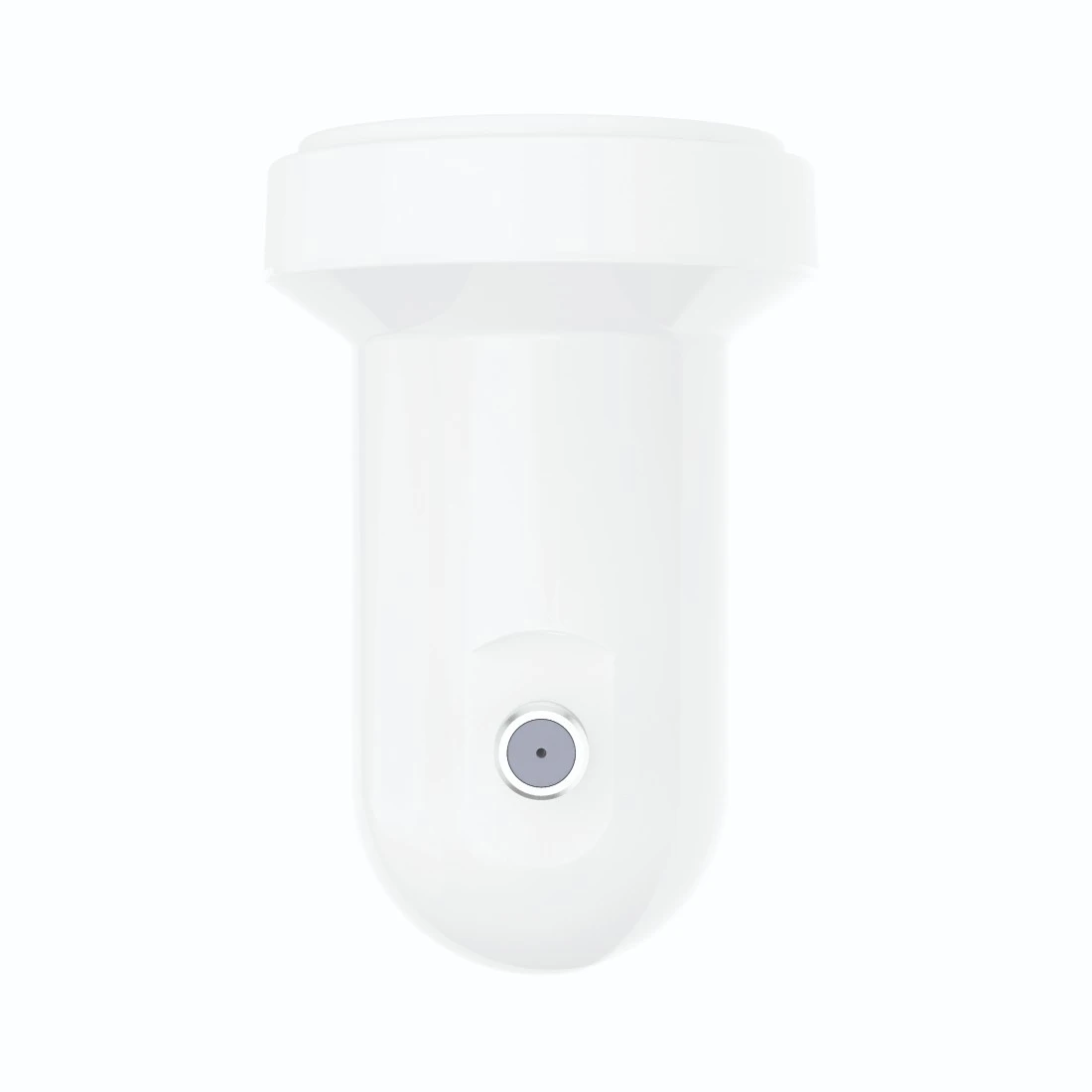

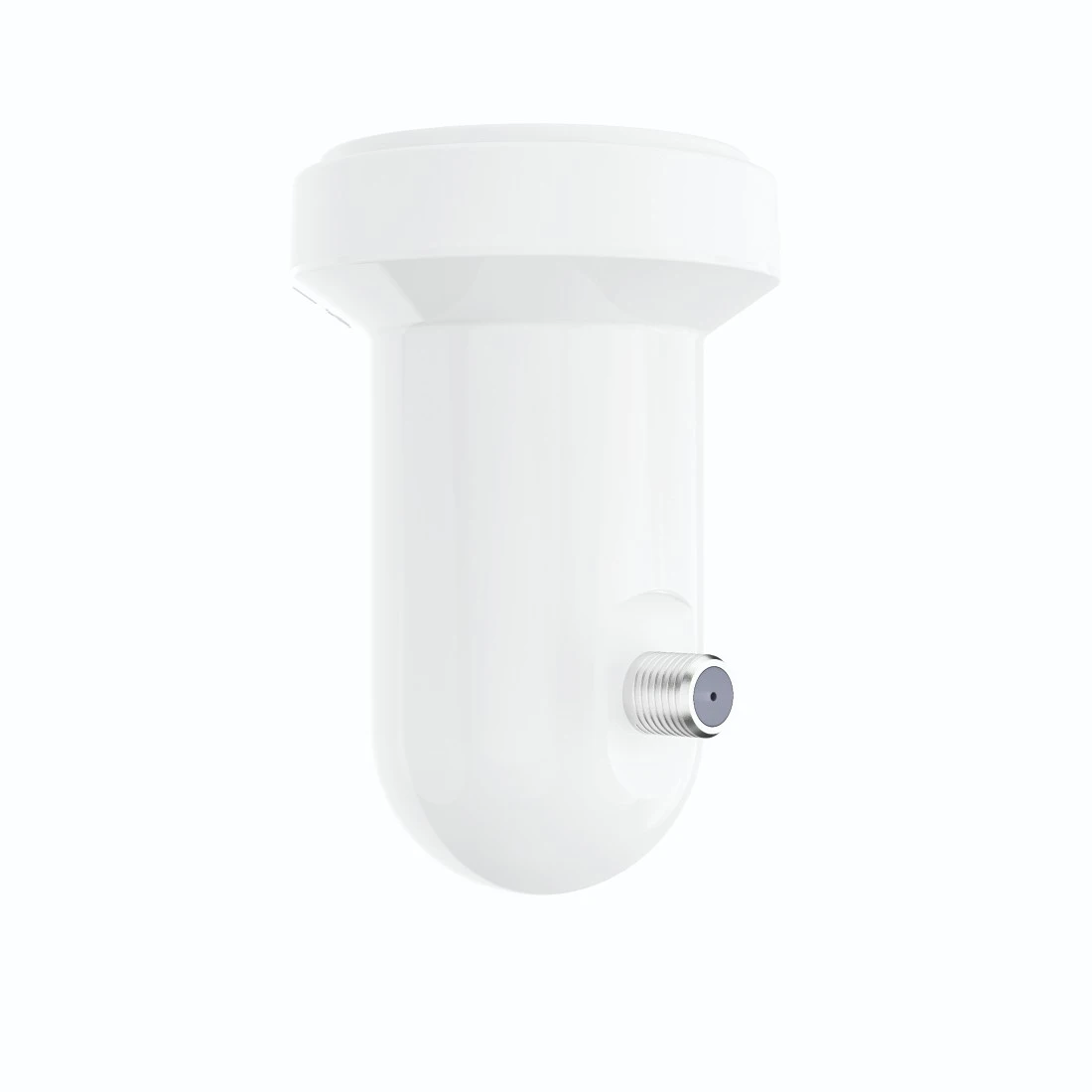

Hama Universal Single LNB
00205374
For connecting to a digital receiver or a TV with built-in digital receiver
Price on demand
Is suitable for
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Low noise factor of 0.3 dB
Particularly low-noise: the high-quality components used ensure a very low noise factor of max. 0.3 dB
Weather protection grommet
Insulating cap against wind and weather: the high-quality weatherproof rubber grommet protects the connections and ensures consistently good transmission quality
Connection for 1 receivers
Easy to connect: the single LNB enables a simple connection for a digital receiver
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour White Shade of colour White Connectivity (Connection) Output F Socket Electrospecific Properties Amplification (typically) 60 dB Gain (typical) min. x Gain (typical) max. 55 x 67 dB Input Frequency Range 10,7 Ghz - 12,75 Ghz Noise Factor (typically) 0.3 dB Oscillator Frequency 9.75 GHz (L1), 10,6 GHz (L2) Output Frequency Range 950-2150 MHz Power Consumption (typical) 90 mA Switch vertical/horizontal 14V, 18V Physical Properties Additional Functions 22 kHz switching Model Single-LNB Size & Weight Feed Horn Diameter 40 mm -
More product information
- For connecting to a digital receiver or a TV with built-in digital receiver
- For digital reception of SAT programmes such as Astra, Eutelsat or Türksat
- For connecting to a digital receiver or a TV with built-in digital receiver
- Ideal for HD, HD+ FullHD, UltraHD UHD 4K and 8K
- 22 kHz switching between low and high band
- Weather-proof thanks to weather protection grommet
-
What's in the Box
- 1 universal single LNB with weather protection grommet
- 1 instruction manual
-
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
