Satellite Socket

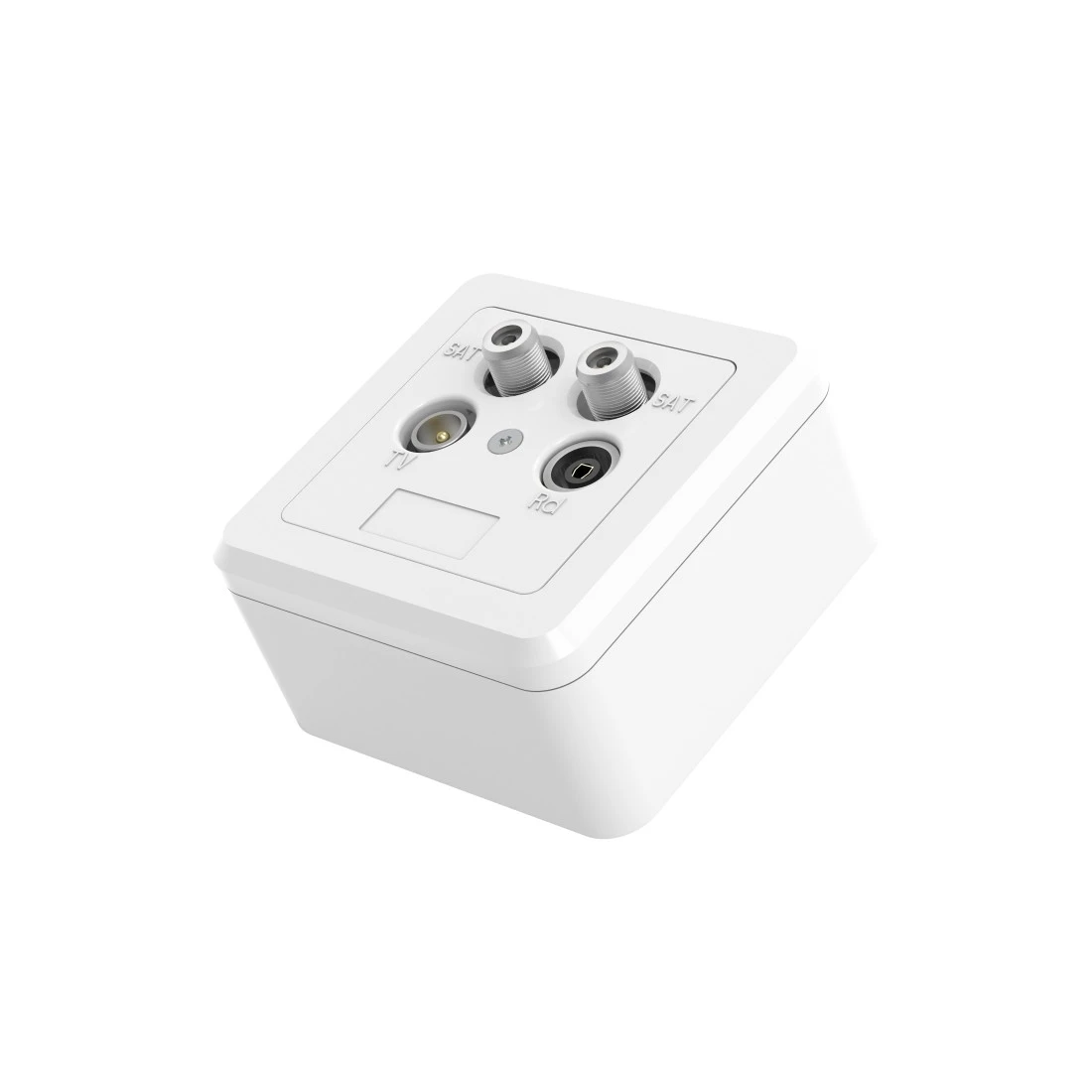

Hama Antenna / SAT / BB Socket, Twin End Socket, pure white

00205354

SAT twin end socket with feedback channel-compatible connection for bi-directional applications on SAT or broadband cable networks

Price on demand
Quality based on German standards

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Return path compatible

Return path compatible connection for interactive applications such as DSL via satellite

  • Technical Specs
    Design (Colour, Pattern, Motif, Series)
    Colour White
    Productline Essential Line
    Shade of colour Pure White
    Connectivity (Connection)
    Connection for TV + 2 x SAT + Radio
    Electrospecific Properties
    Connection Loss 3 dB
    Frequency Range 88 MHz - 2400 MHz
    Physical Properties
    Model With Cover and Frame
    Field of Application
    Usage Terminal Socket
  • More product information
    • SAT twin end socket with feedback channel-compatible connection for bi-directional applications on SAT or broadband cable networks
    • 4 connections: TV, radio and 2 x SAT
    • Frequency range: 5-65 MHz (with feedback channel via TV connection) and 88-2400 MHz
    • SAT connection loss: 3 dB +/- 1 dB
    • TV connection loss: 3 dB +/- 1 dB
    • FM connection loss: 3 dB +/- 1 dB
    • For BB/SAT networks
    • Ideal for HDTV
    • DC supply via F sockets
    • Can be used with and without frame
    • Suitable for covers compliant with German standards, e.g. for Bush + Jäger
  • What's in the Box
    • 1 antenna / SAT / BB socket
    • 1 surface-mounted frame
    • 1 cover plate
    • Mounting hardware
