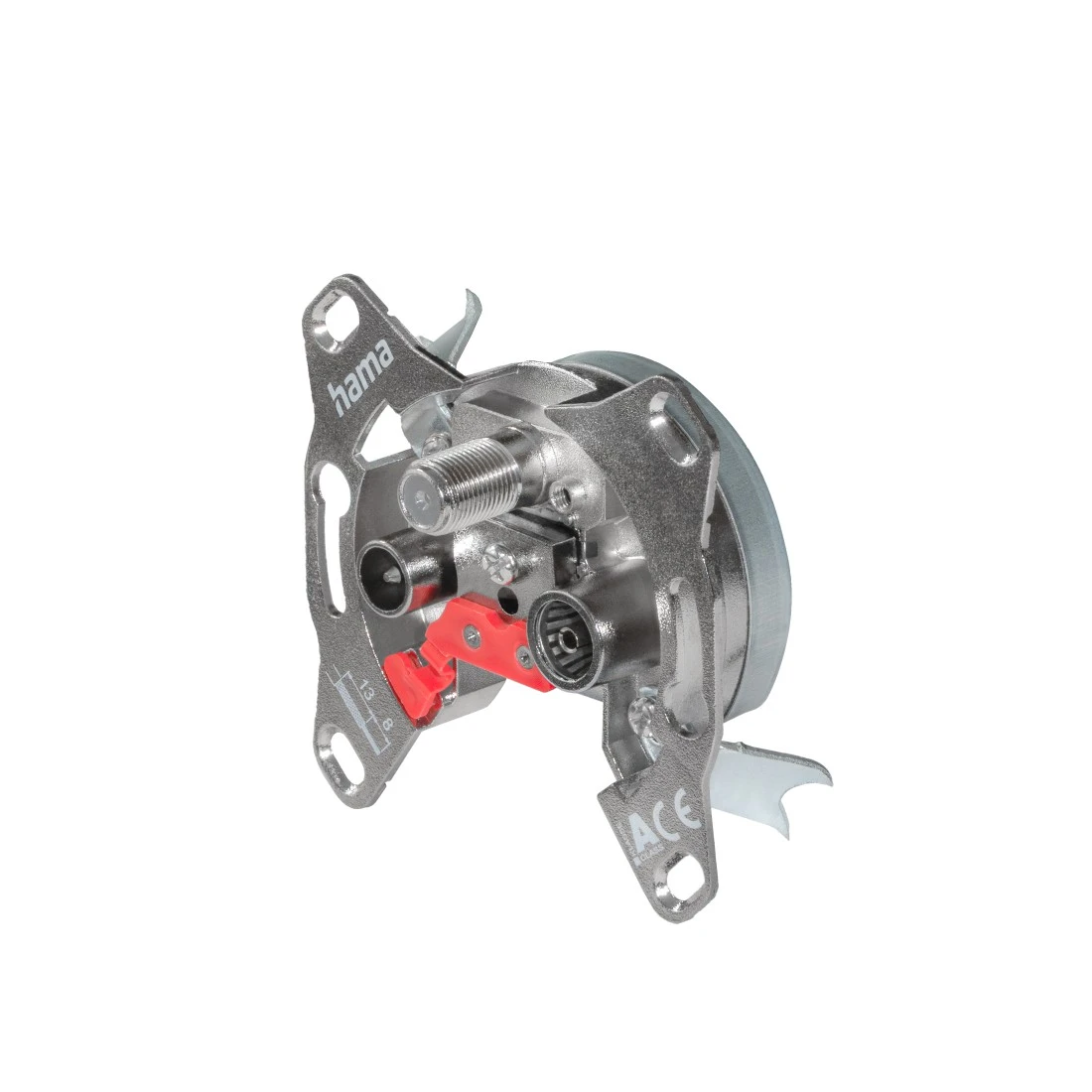

Hama SAT / Antenna Terminal Socket, 0 dB, 4-in-1

00205316

SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable

Price on demand

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

4in1

Simultaneous use of SAT, cable TV, internet and telephone possible

Return path compatible

Connector capable of operating in the return channel for interactive applications such as internet or telephone via cable modem

Triple play

TV, telephone and Internet (Triple) through a single line

Unicable compatible

Unicable compatible for use in single cable systems according to EN 50494

Technical Specs

Design (Colour, Pattern, Motif, Series)
Colour	Silver
Productline	Essential Line

Connectivity (Connection)
Connection for	TV + SAT + Radio + Telephone + Unicable

Electrospecific Properties
Connection Loss	0 dB
Frequency Range	5 Mhz - 2200 Mhz

Physical Properties
Material	Die-cast housing
Model	Without cover and frame

Field of Application
Usage	Terminal Socket

More product information

SAT / antenna terminal socket with feedback channel-compatible connection for bidirectional applications on SAT or broadband cable networks to received SAT/cable/Internet/telephone/Unicable
Capable of receiving DVB-S/-C/-T
Multimedia-compatible with 5 to 65 MHz feedback channel (Internet/telephone)
The Internet signal is received at the TV socket
Diode-decoupled SAT connection
Extended F-socket (installation-friendly)
Suitable for covers compliant with German standards, e.g. for Bush + Jäger
Ideal for HDTV

Technical data:
Frequency range: 5 to 2,200 MHz

With SAT connection: 950 to 2,200 MHz
Connection loss: < 2 dB

With TV connection: 109 to 865 MHz;
Return channel: 5 to 65 MHz
Connection loss: < 2db

With radio connection: 87.5 to 108 MHz
Connection loss: < 4.5 dB
Connections:
F socket: SAT/Unicable
IEC (coax socket): antenna/cable (Internet/telephone)
IEC (coax plug): Radio

What's in the Box

1 SAT / antenna terminal socket

Note for Consumers

For the simultaneous use of cable TV and the Internet/telephone, a data TV/distributor must be used.
