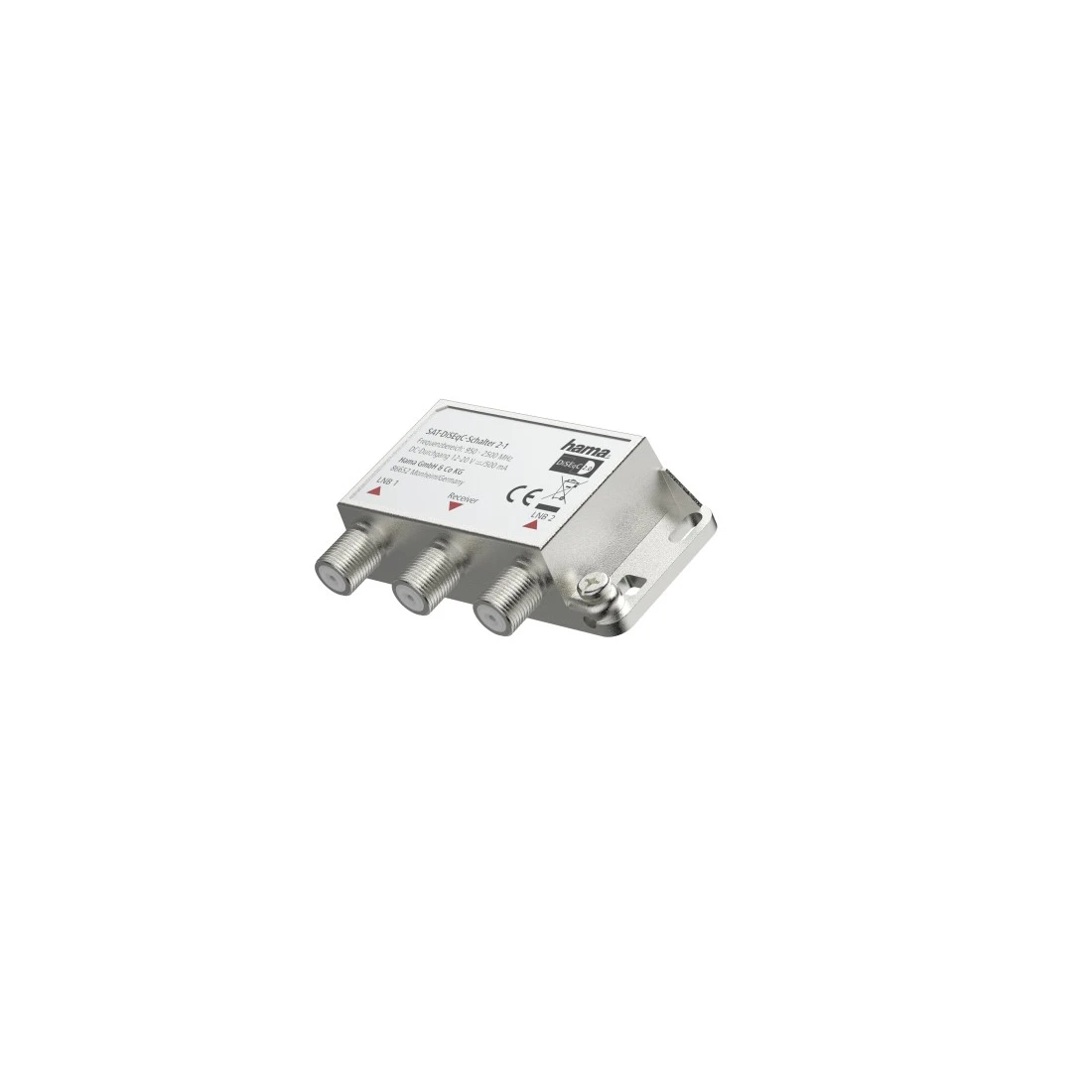

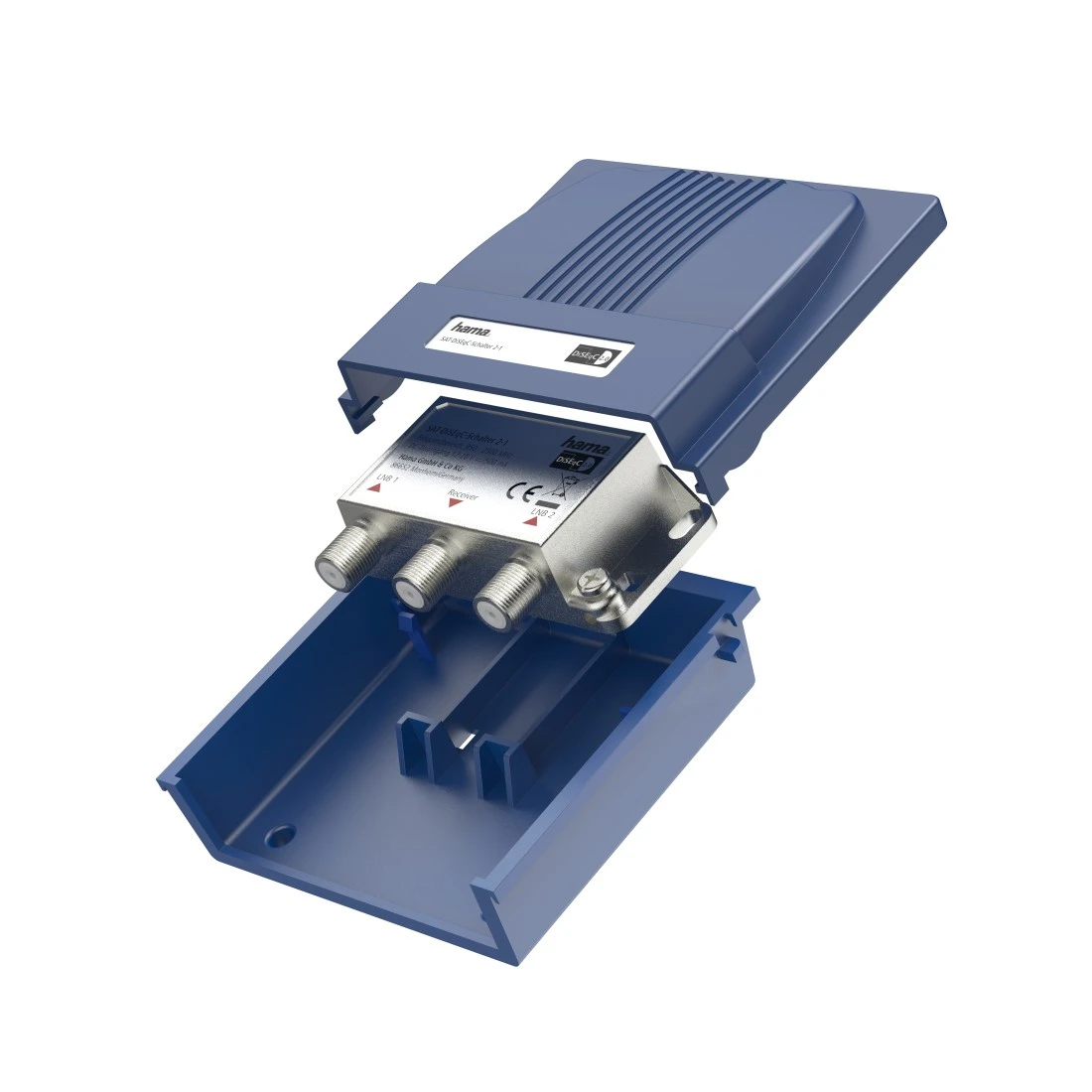

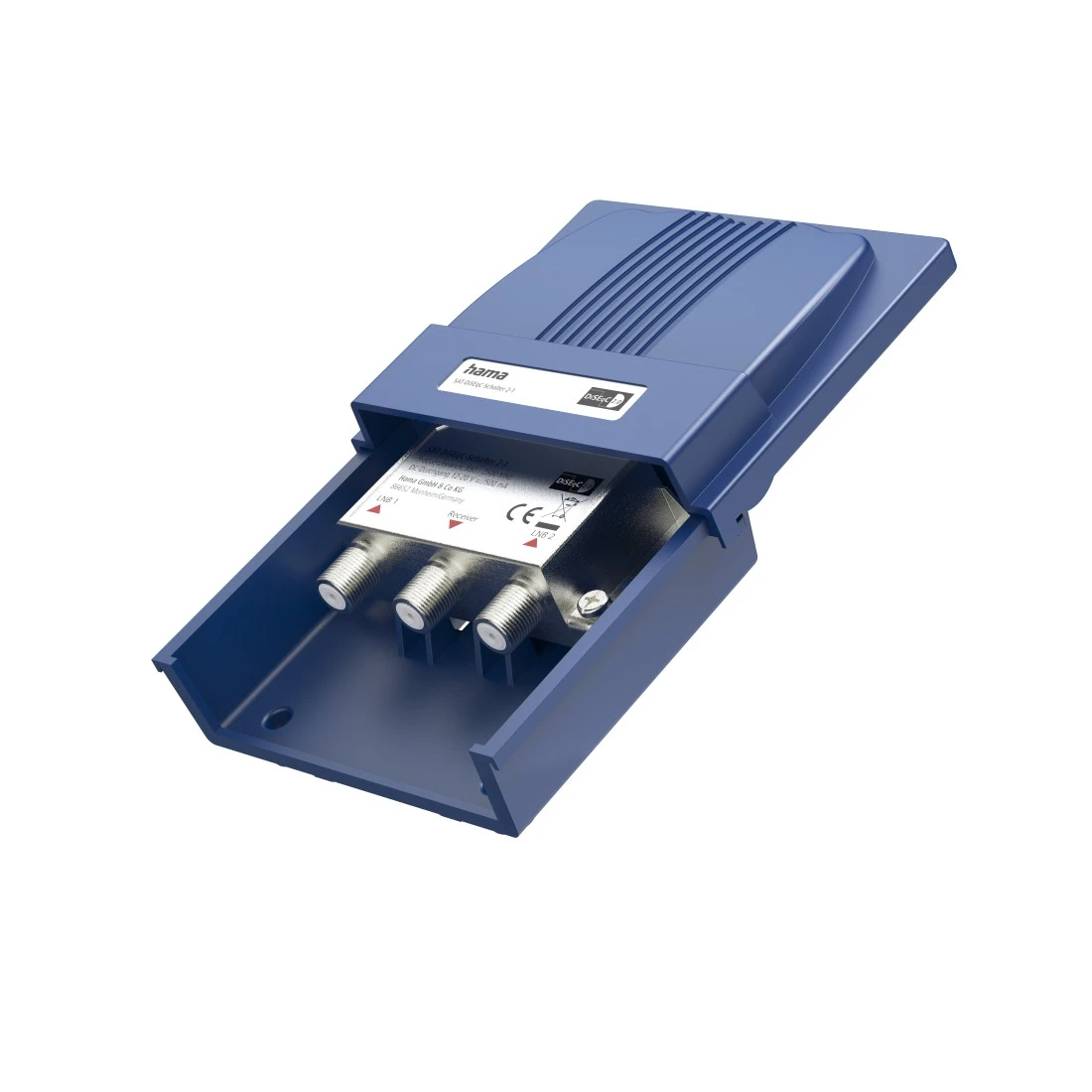

Hama SAT-DiSEqC Switch 2-1

00205289

You want to receive the programmes from ASTRA and Eutelsat? Just take a DiSEqC switch. It allows you to quickly switch between the satellites. And if you prefer another programme than your fellow occupant who likes e.g. Türksat better, this is no problem either.

Price on demand

Quality based on German standards

From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.

Highlights

Weatherproof

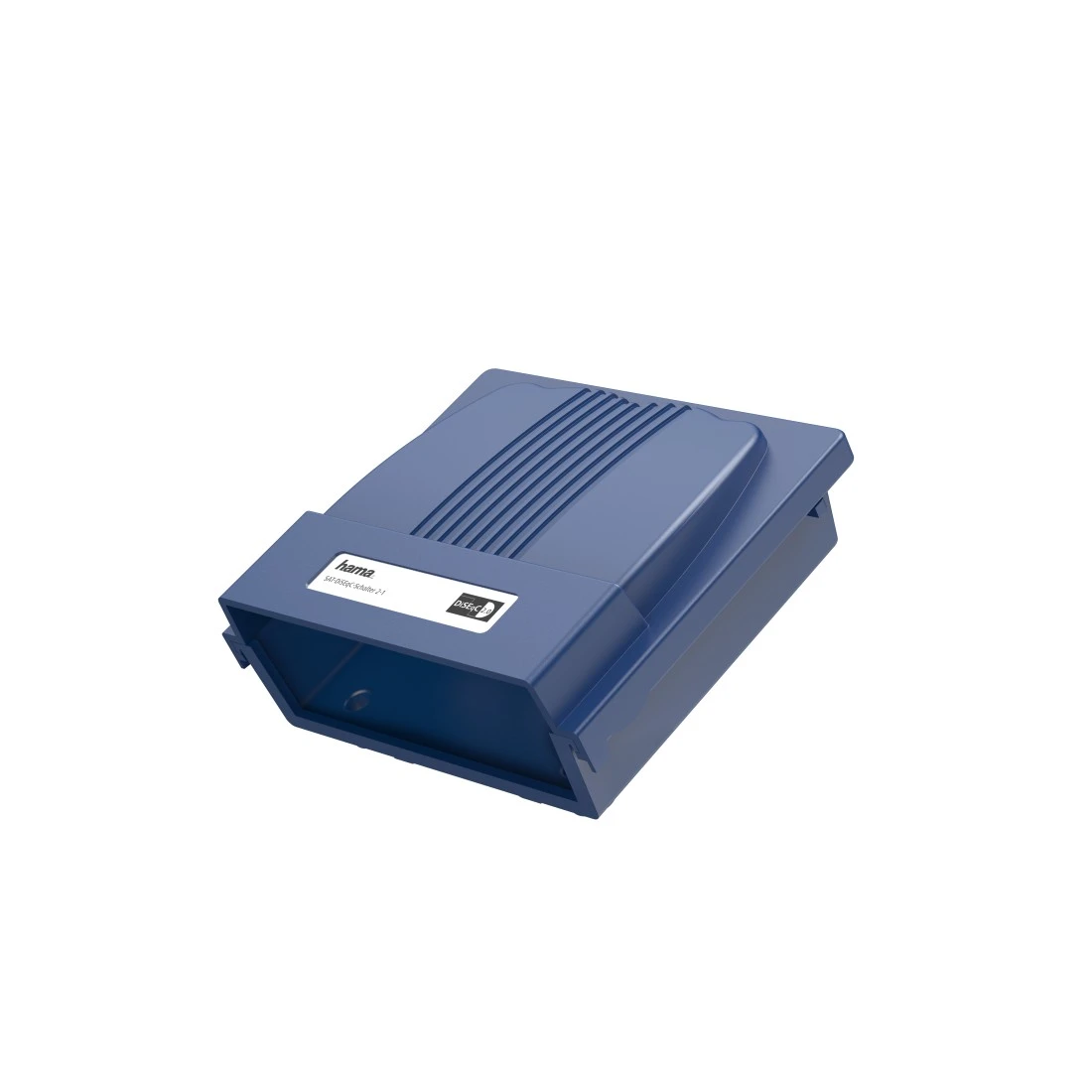

Weatherproof due to plastic housing

Full metal housing

Solid full metal housing for protection against outside interference

Fully shielded

Fully shielded lines for optimal reduction of electromagnetic interference

Technical Specs

Design (Colour, Pattern, Motif, Series)

Colour Blue

Productline Essential Line

Shade of colour Blue

Connectivity (Connection)

Input F Socket

Number of Inputs 2

Number of Outputs 1

Output F Socket

Electrospecific Properties

DiSEqC-Level 2.0

Frequencyline 950 - 2500 MHz

Physical Properties

Material Plastic Material

Energy

Max. Remote Supply Current 400 mA
More product information
- For connecting 2 single LNBs to one receiver in order to be able to use two different satellite positions (e.g. Astra, Türksat) via one receiver
- Compliant with DiSEqC Level 2.0
- DC and 22 kHz transmission
- Suitable for outdoor installation
- Transmission loss: 3.5 dB +/ -0.5 dB
- Decoupling (SAT inputs): >20 dB
What's in the Box
- 1 SAT-DiSEqC switch 2-1
- 1 instruction manual
Note for Consumers

Power can be supplied via the receiver.
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
