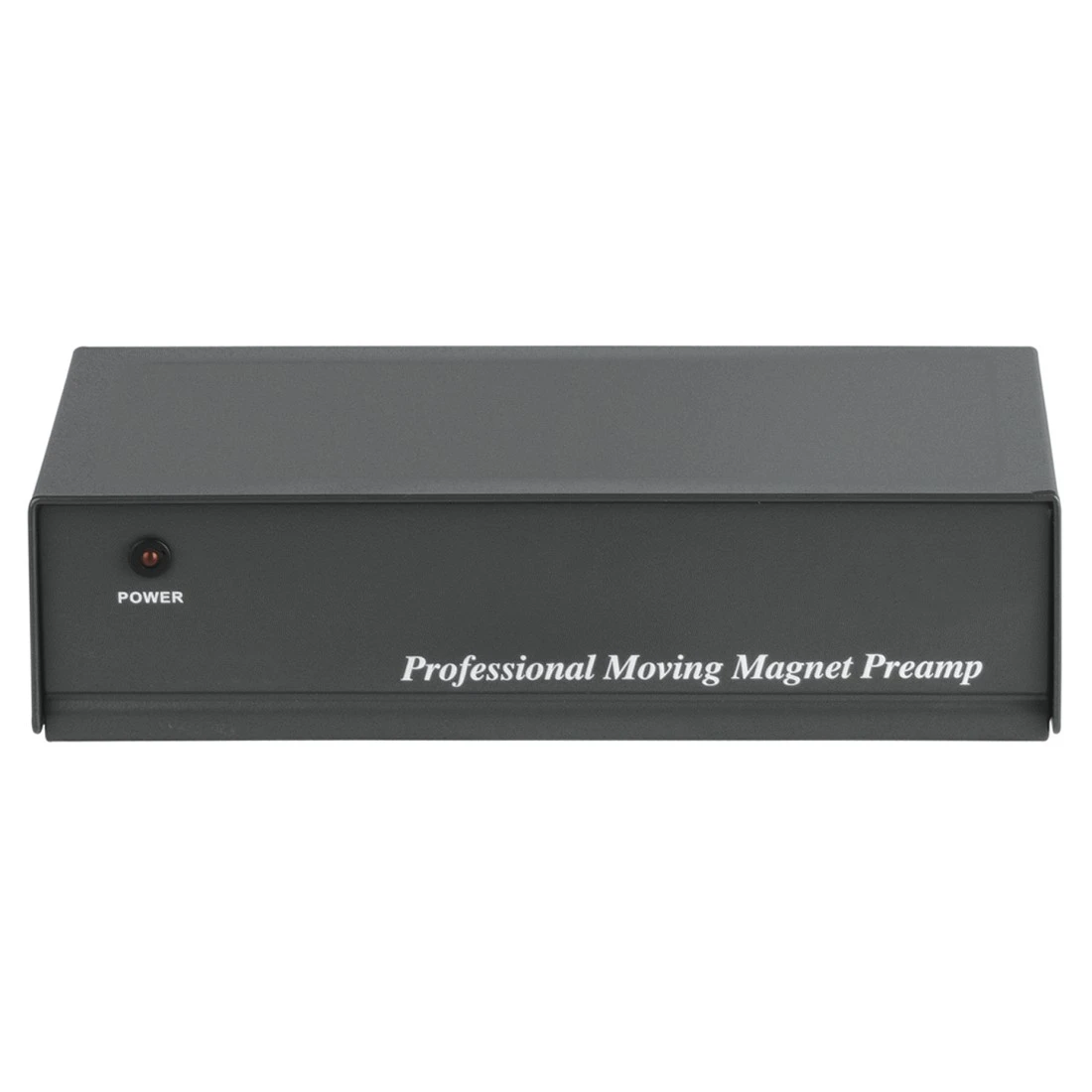

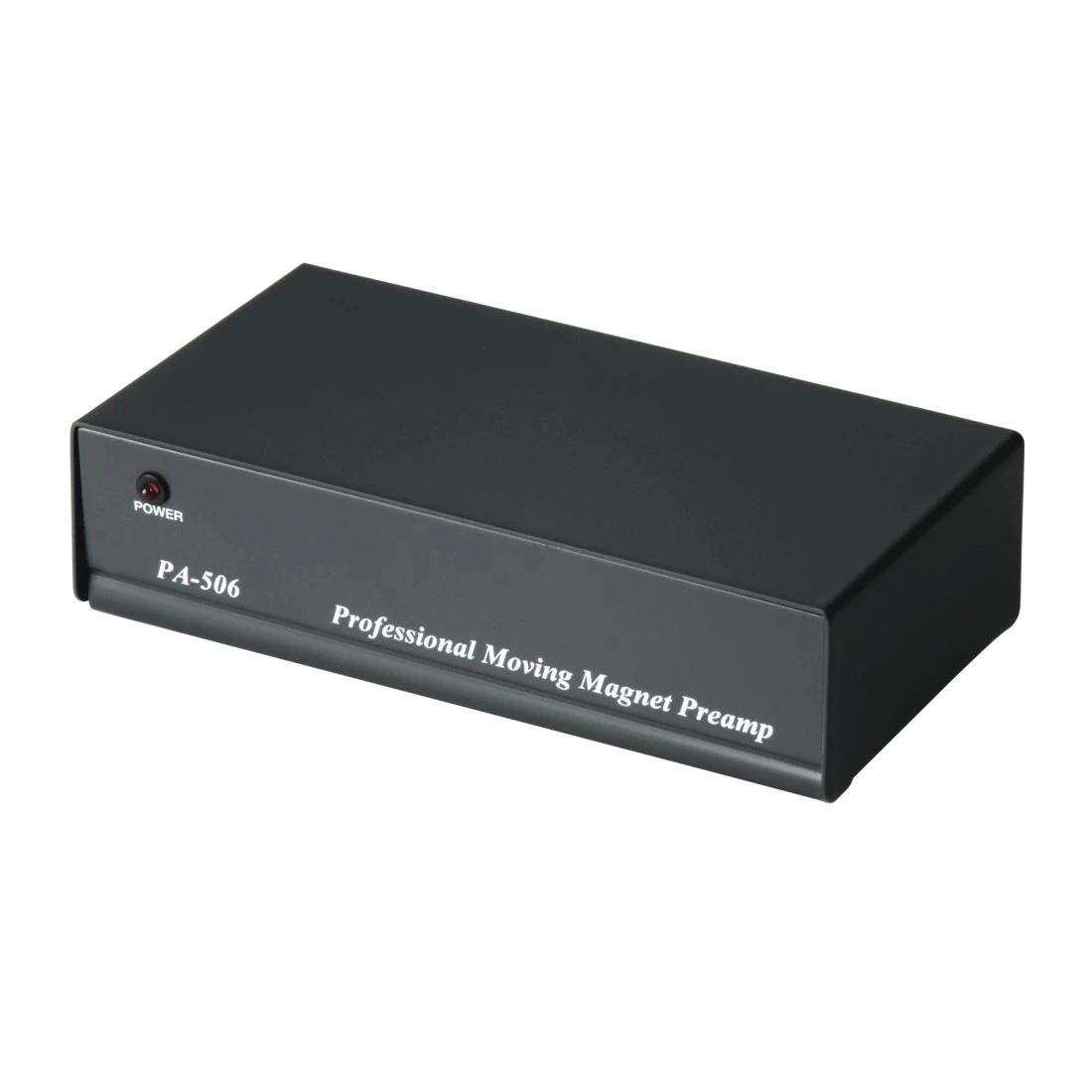

Hama "PA 506" Stereo Phono Preamplifier, with Power Supply Unit 230 V / 50 Hz
The old 1980s heavy metal record, hits from the '50s or songs from your favourite band remastered as an LP: on the record player, these hits only achieve a clear and dynamic sound if a phono pre-amplifier takes the sound quality to a new level.
Highlights
Power supply unit
Additional power supply unit for power supply
Gold-plated contacts
Gold-plated contacts with low contact resistance for secure signal transmission
Full metal housing
Solid full metal housing for protection against outside interference
-
Technical Specs
Design (Colour, Pattern, Motif, Series) Colour Black Product Division HiFi, TV & Home Cinema Shade of colour Black Connectivity (Connection) Converted Inputs Aux-IN/CDs/Line-IN/MD-IN Field of Application Suitable for Stereo-Phono -
More product information
- Amplifies and equalizes record player signals

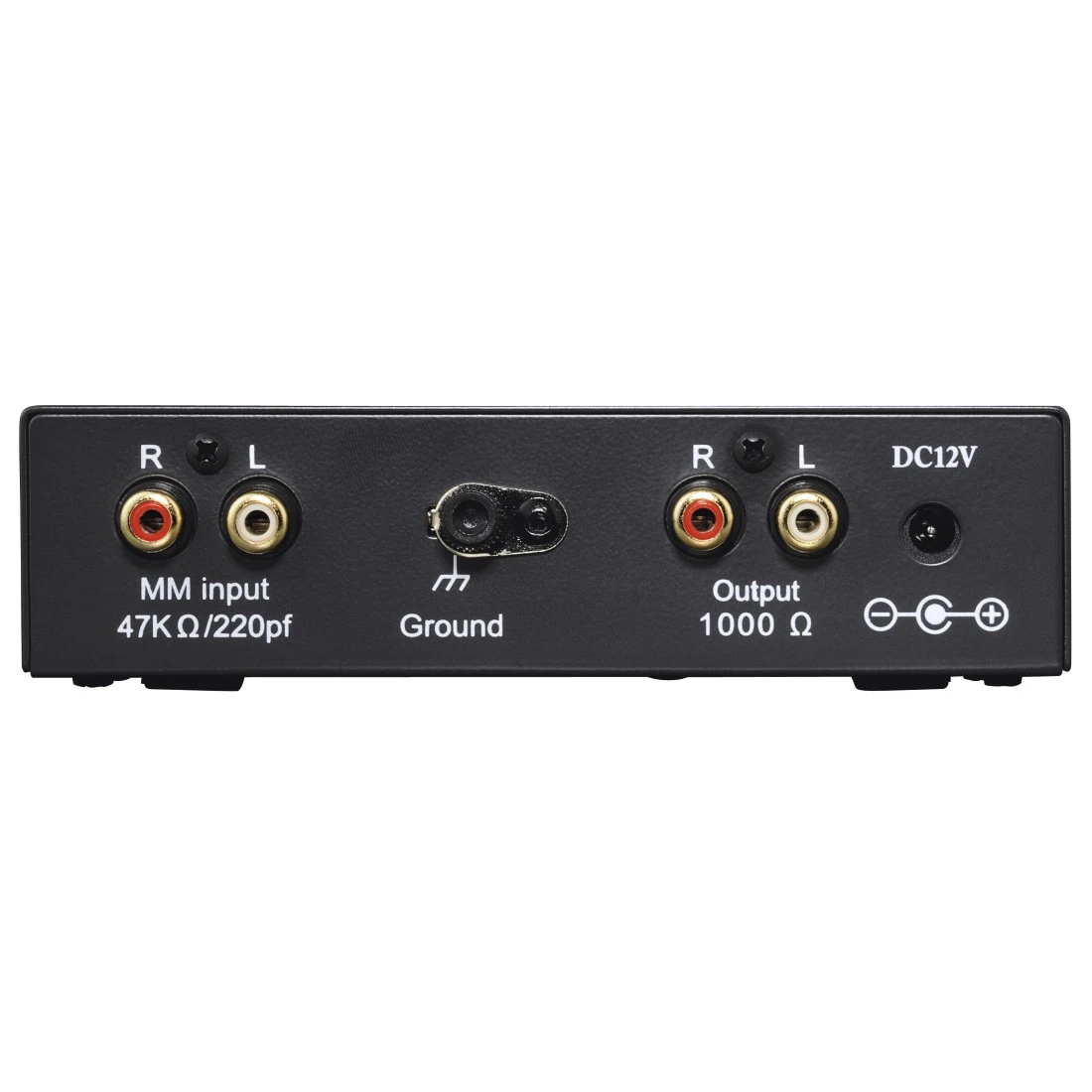

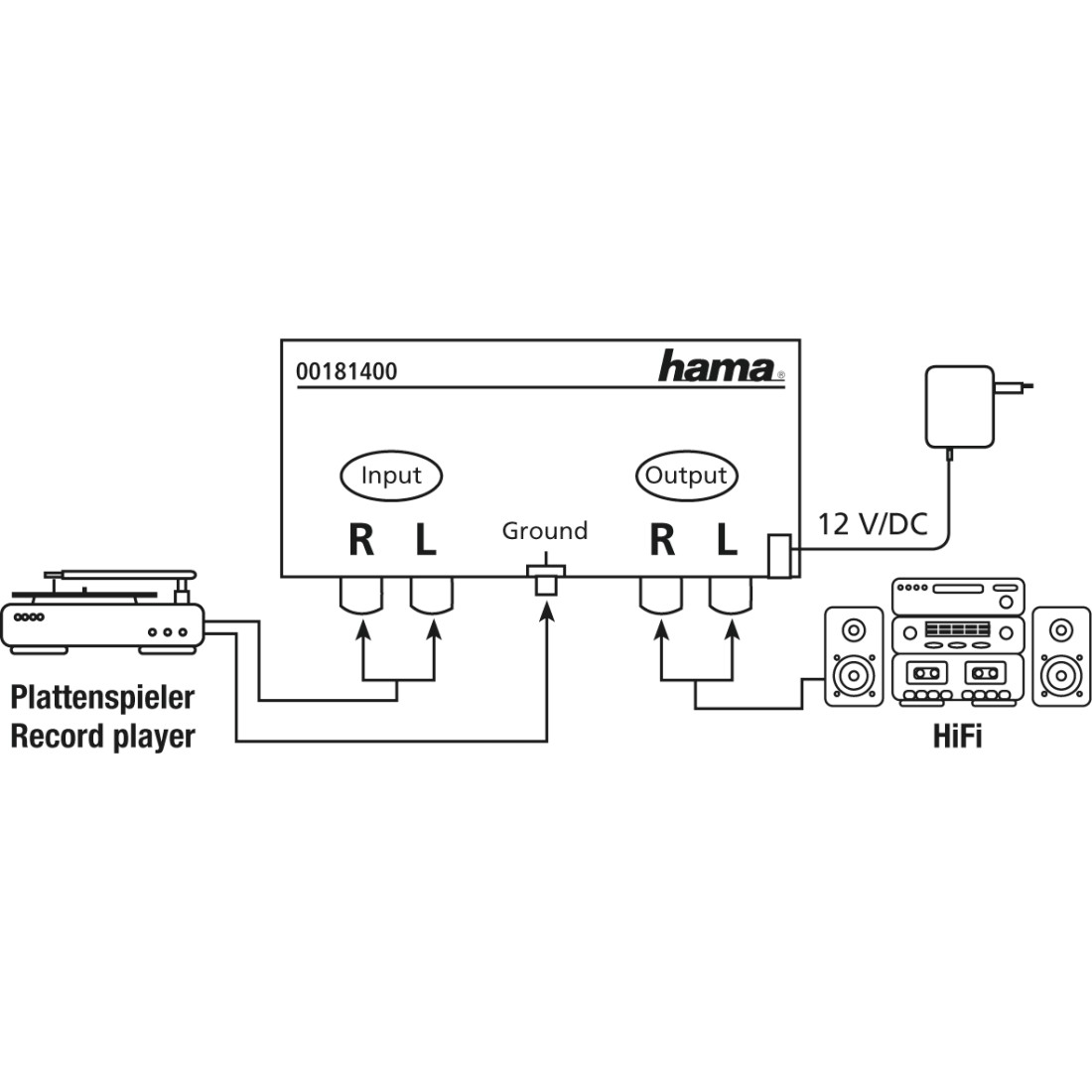

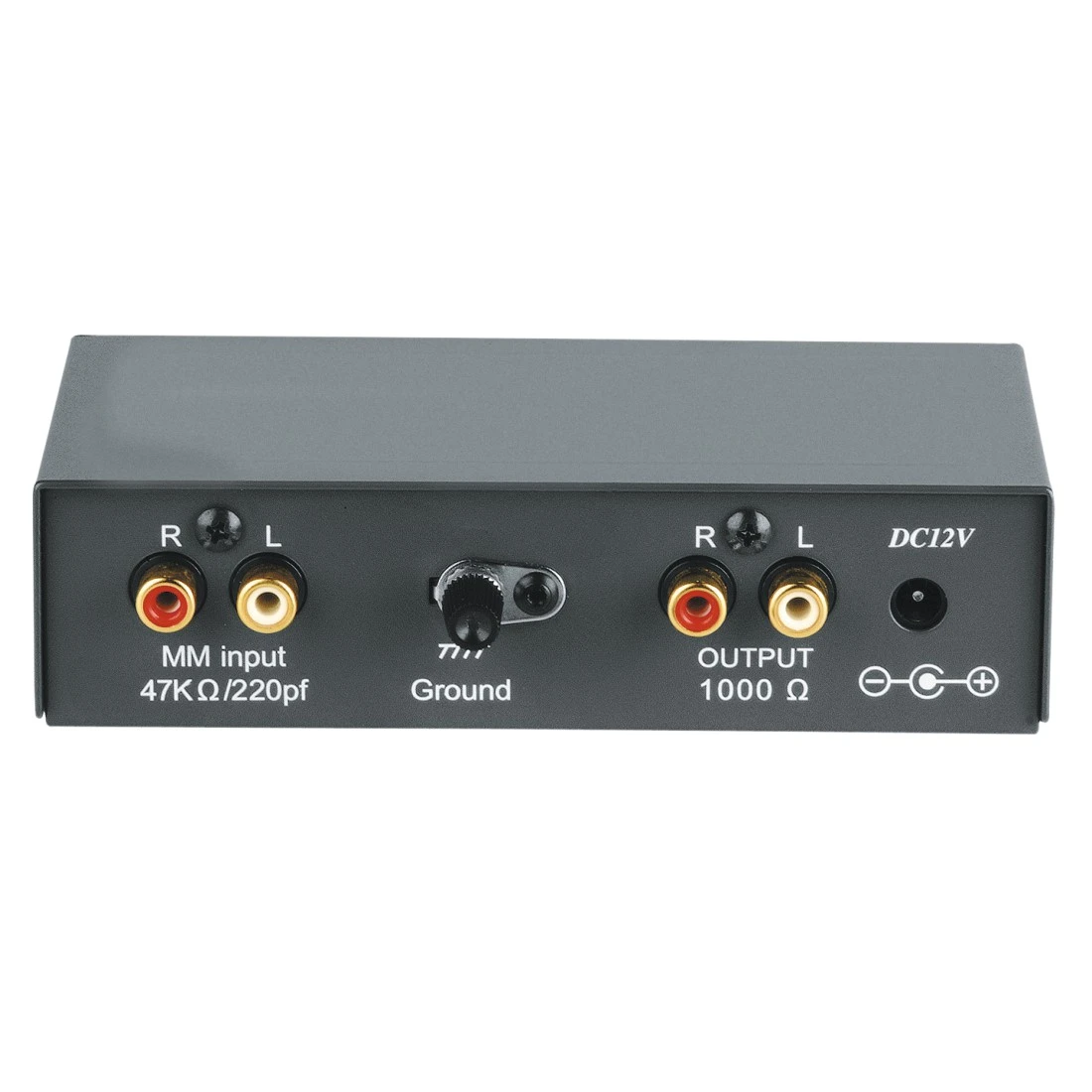

- For the connection of record players with magnet system to audio mixing decks or stereo systems with line / aux / MD / CD inputs
- Low-noise preamplifier with RIAA equalisation
- Also suitable for audio mixing decks and PC sound cards

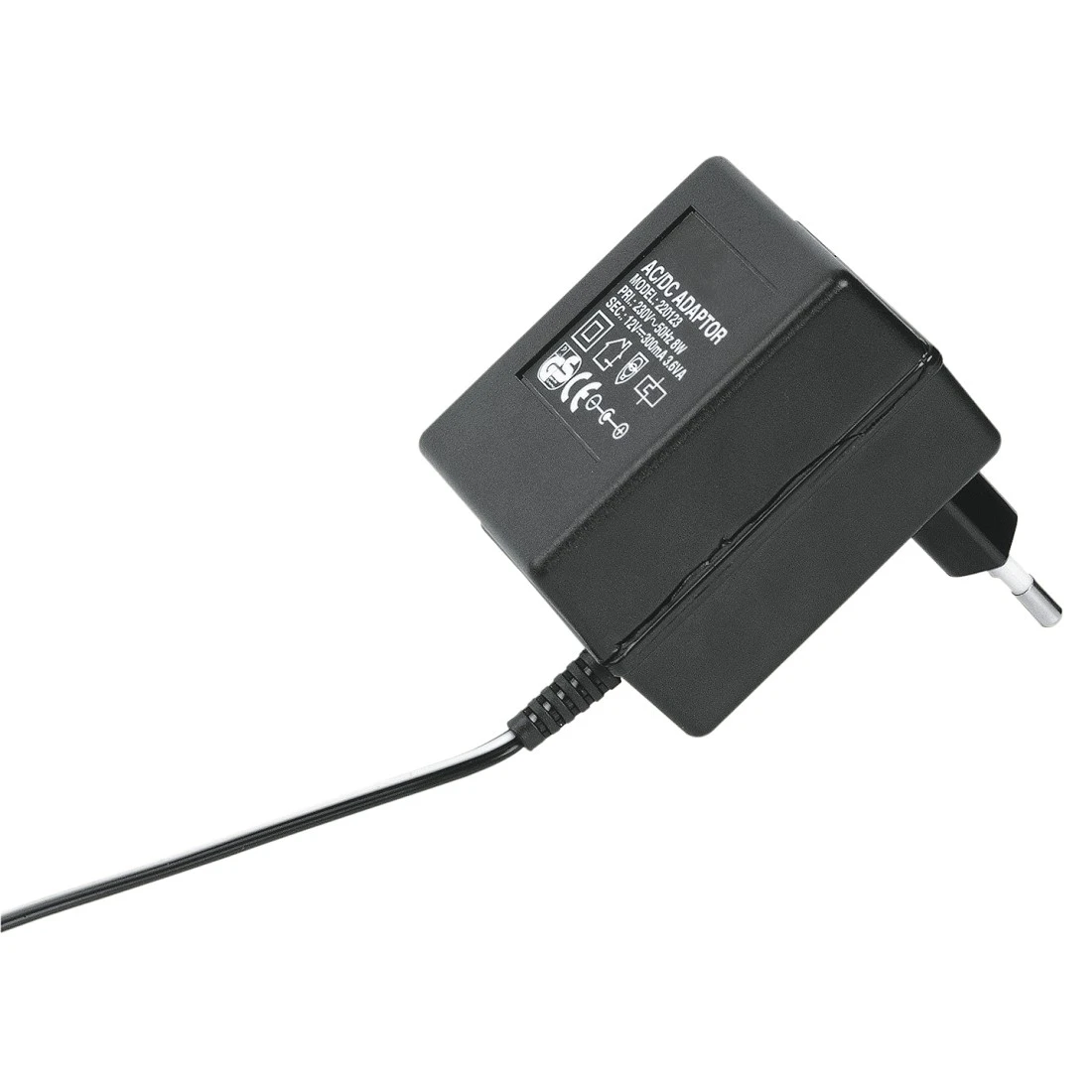

- With 230 V / 50 Hz, 300 mA power supply unit
-
What's in the Box
- 1 "PA 506" stereo phono preamplifier
- 1 power supply unit
- 1 RCA cable
- 1 instruction manual
Downloads
Item no. / Name | Language | Size | Download |
---|---|---|---|
00181400 / Hama "PA 506" Stereo Phono Preamplifier, with Power Supply Unit 230 V/50 Hz | de / en / es / fr / it / nl / sv | 0,3 MB |
![]() |
