Wall brackets
Is accessory of
Hama TILT TV Wall Bracket, 191 cm (75"), black
00118069
For the installation of flat screen TVs with a screen size from 81 to 191 cm (32 to 75")
Price on demand
Is suitable for
Quality based on German standards
From the initial sample to series maturity: our products undergo strict and comprehensive quality controls, managed and carried out in Germany. This enables us to guarantee compliance with all specifications, guidelines and standards – and satisfy the strictest demands.
Highlights
Easy-Fix system
Quick and easy to position every time: with just one action, you can orientate the TV spontaneously to match your needs - without any tools at all
| Colour | Black |
| Shade of colour | Black |
| Quality | Basic |
| Hole Size Attachment | Up to M6 |
| Material | Steel Plate |
| Maximum Load Capacity | 35 kg |
| Maximum swivel range | 0 ° |
| Model | TV |
| number of joints | 0 |
| Projection maximum | 2.4 cm |
| Projection minimum | 2.4 cm |
| Rotation | 0 ° |
| Special Feature | Spirit level |
| Tilt +/- | 0 / 10 ° |

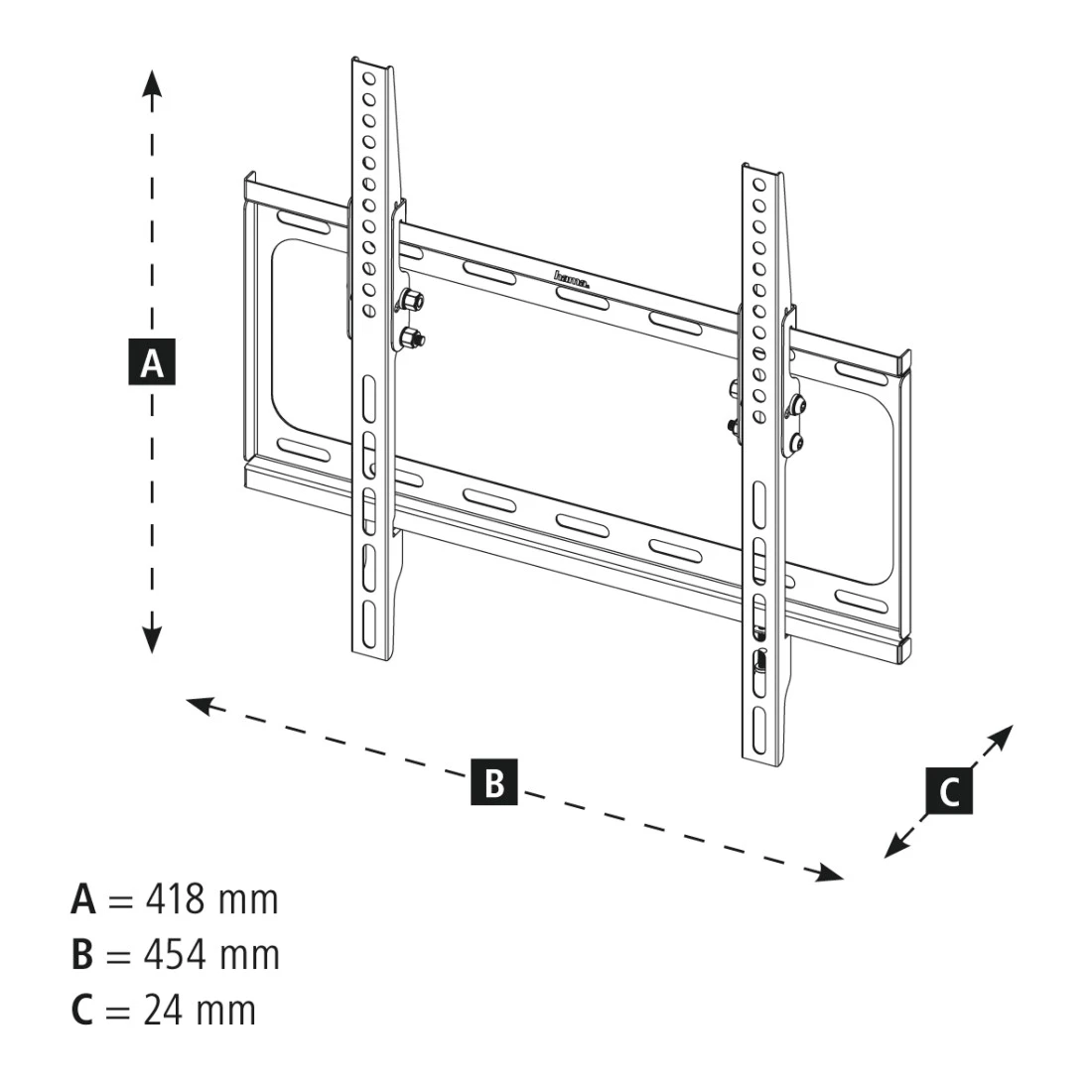

| External Dimension (Height) | 41.8 cm |
| External Dimension (Width) | 45.4 cm |
| Mounting Plate (Length) | 45.4 cm |
| Mounting Plate (Width) | 20.4 cm |
| Screen Dimensions | 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 191 cm (75") |
| VESA (from-to) | 75x75 - 400x400 |
| VESA Standard | 75 x 75, 100 x 100, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400 |
| Recommended Maximum Screen Size | 191 cm (75") |
| Recommended Minimum Screen Size | 81 cm (32") |
| Recommended Screen Size | 81 - 191 cm (32" - 75") |
| Suitable for | TV |
| Version | Tilting |
- For the installation of flat screen TVs with a screen size from 81 to 191 cm (32 to 75")
- Optimal positioning of the flat panel display in every room
- Supports all VESA standards up to 400 x 400
- Up to -10° continuous tilt
- 1 TILT TV wall bracket

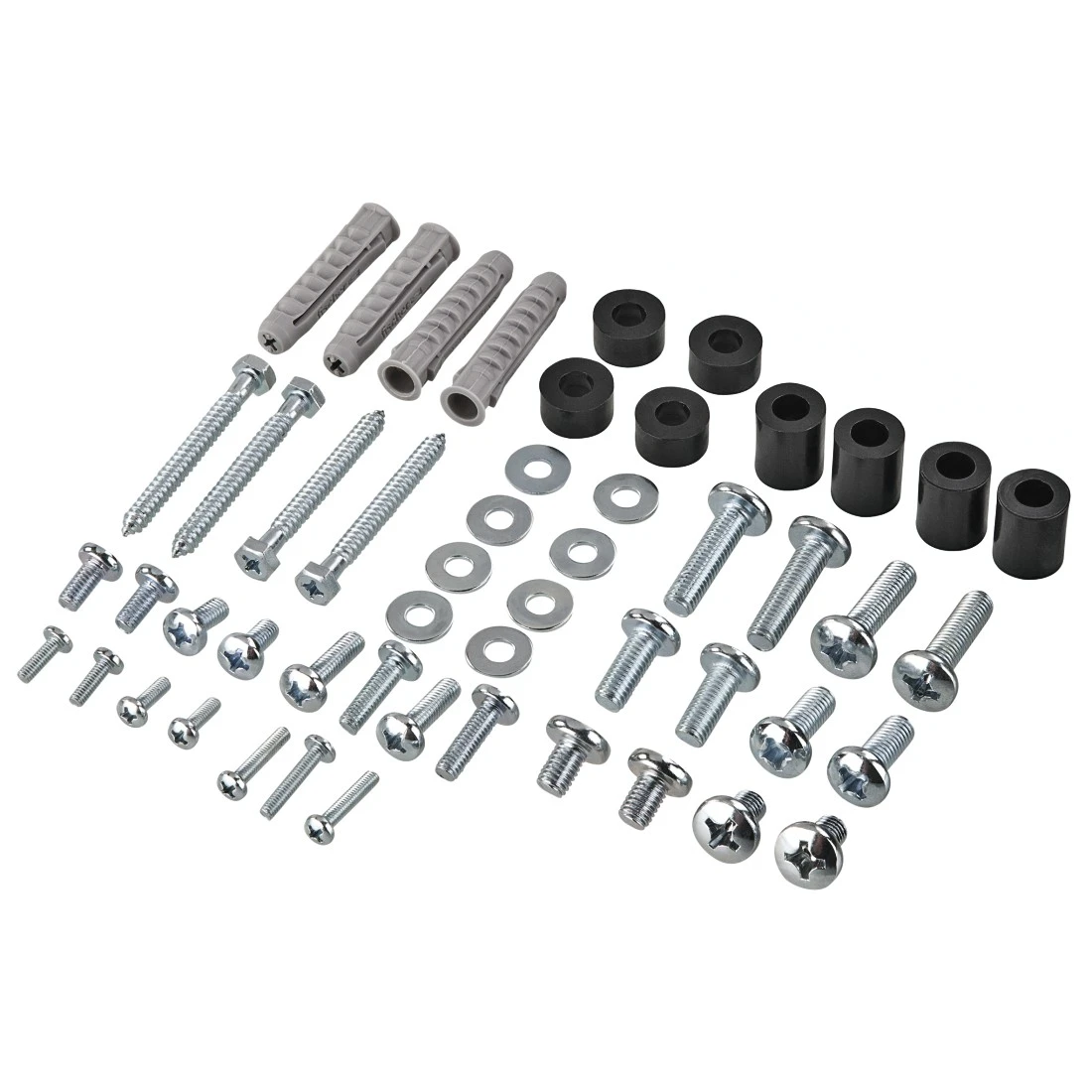

- Mounting hardware
- 1 spirit level
- 1 installation guide
If you want to install your TV set very close to the wall, this TV wall bracket is exactly the right bracket for your needs. If however you want more distance from the wall, simply use the spacer included.
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00118069 TILT TV Wall Bracket, 191 cm (75"), black: 10 Years Warranty
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
The spirit level included is only intended as a rough guide. We recommend checking the correct alignment using a calibrated spirit level from a specialist store.
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
